Series:80×80×56MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart
-
Rated Voltage:
12V
-
Operating Temp:~10~70℃
-
Weight:134g
8056 Serise
Basic Parameters

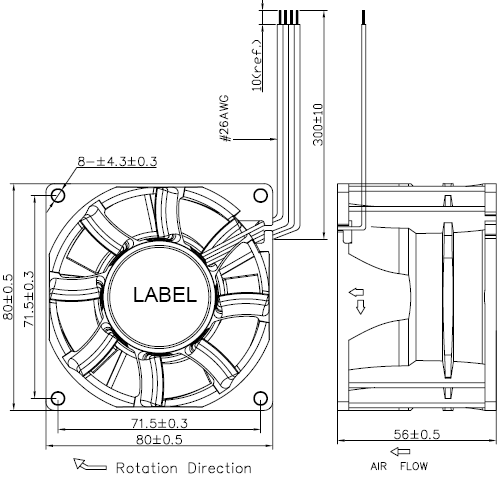

Illustration
Model
| MODEL | Rated Voltage (V) |
Operating Voltage Range (V) |
Rated Current (Amp) |
Rated Input Power (W) |
Rated Speed (rpm) |
Air Flow | Static Pressure (mmH₂O) |
Sound level dB(A) |
|
| (CFM) | m³/min | ||||||||
| XHA080561BM | 12 | 7~13.2 | 0.26 | 3.12 | 5000 | 46.24 | 1.31 | 13.95 | 45 |
| XHA080561BM | 12 | 7~13.2 | 0.68 | 8.16 | 7000 | 69.1 | 1.96 | 28.7 | 55.2 |
| XHA080561BH | 12 | 7~13.2 | 1.8 | 21.60 | 10000 | 98.9 | 2.80 | 57.2 | 62.2 |
| XHA080561BH | 12 | 7~13.2 | 3.2 | 38.40 | 12500 | 124 | 3.51 | 79.99 | 68.5 |
NO
TES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
