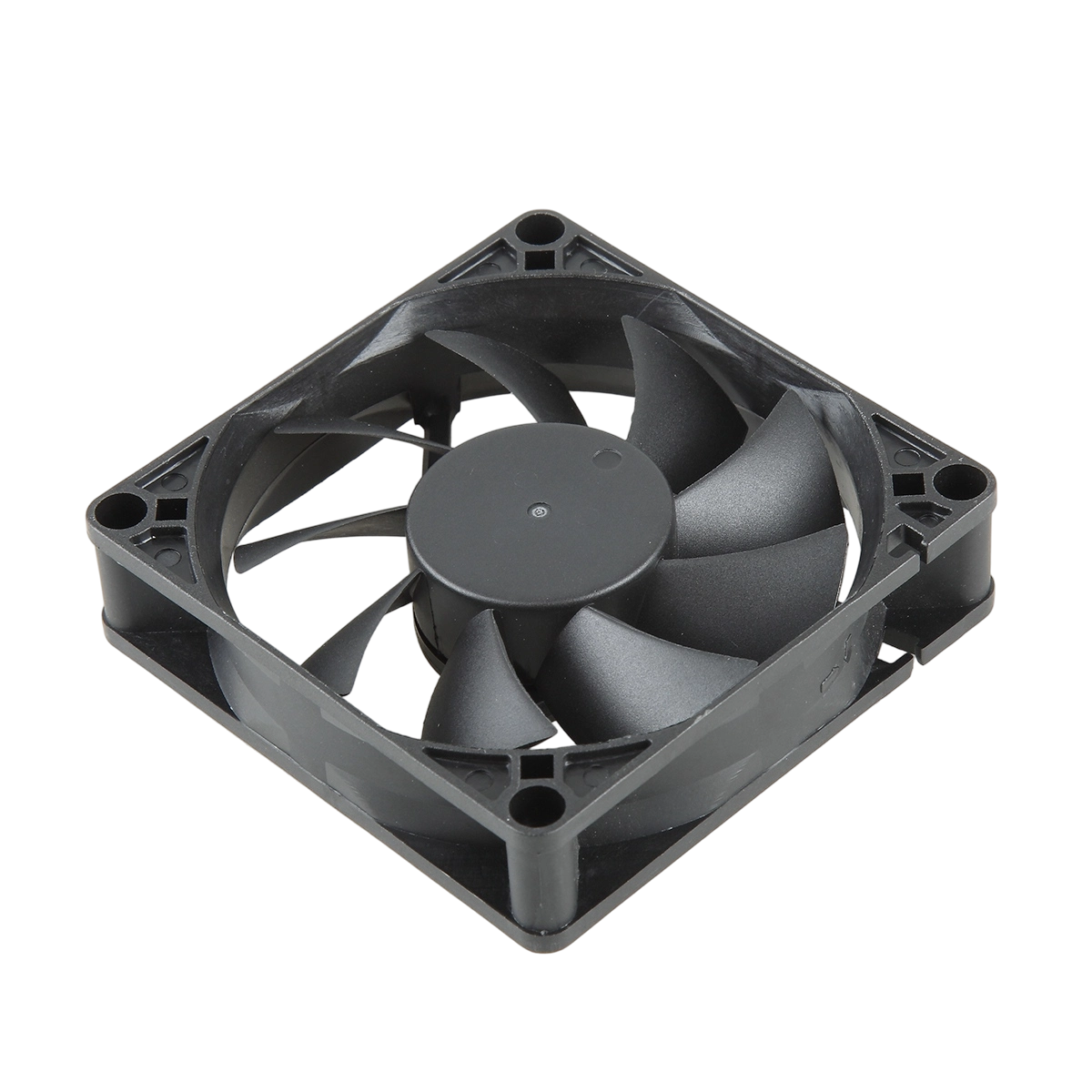

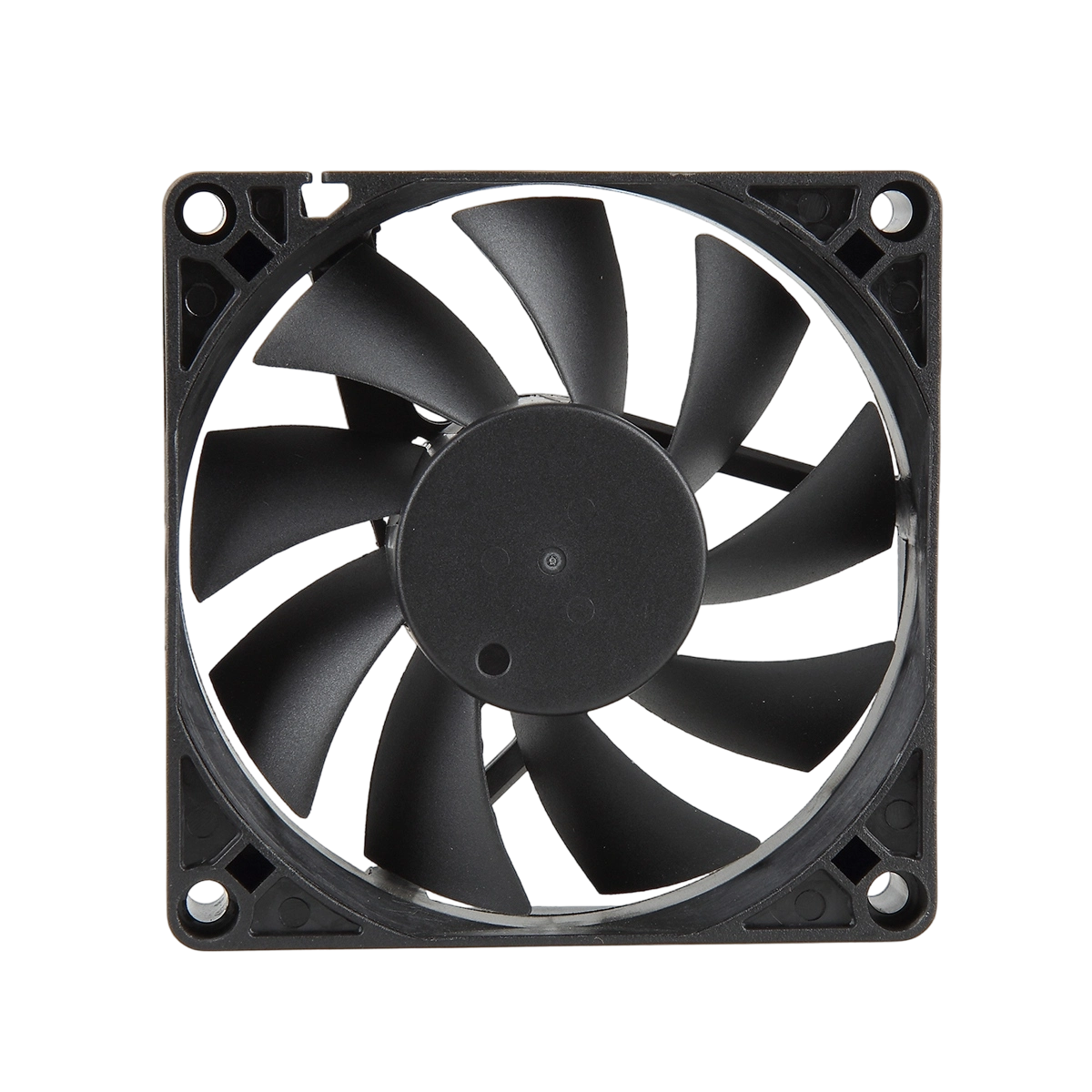

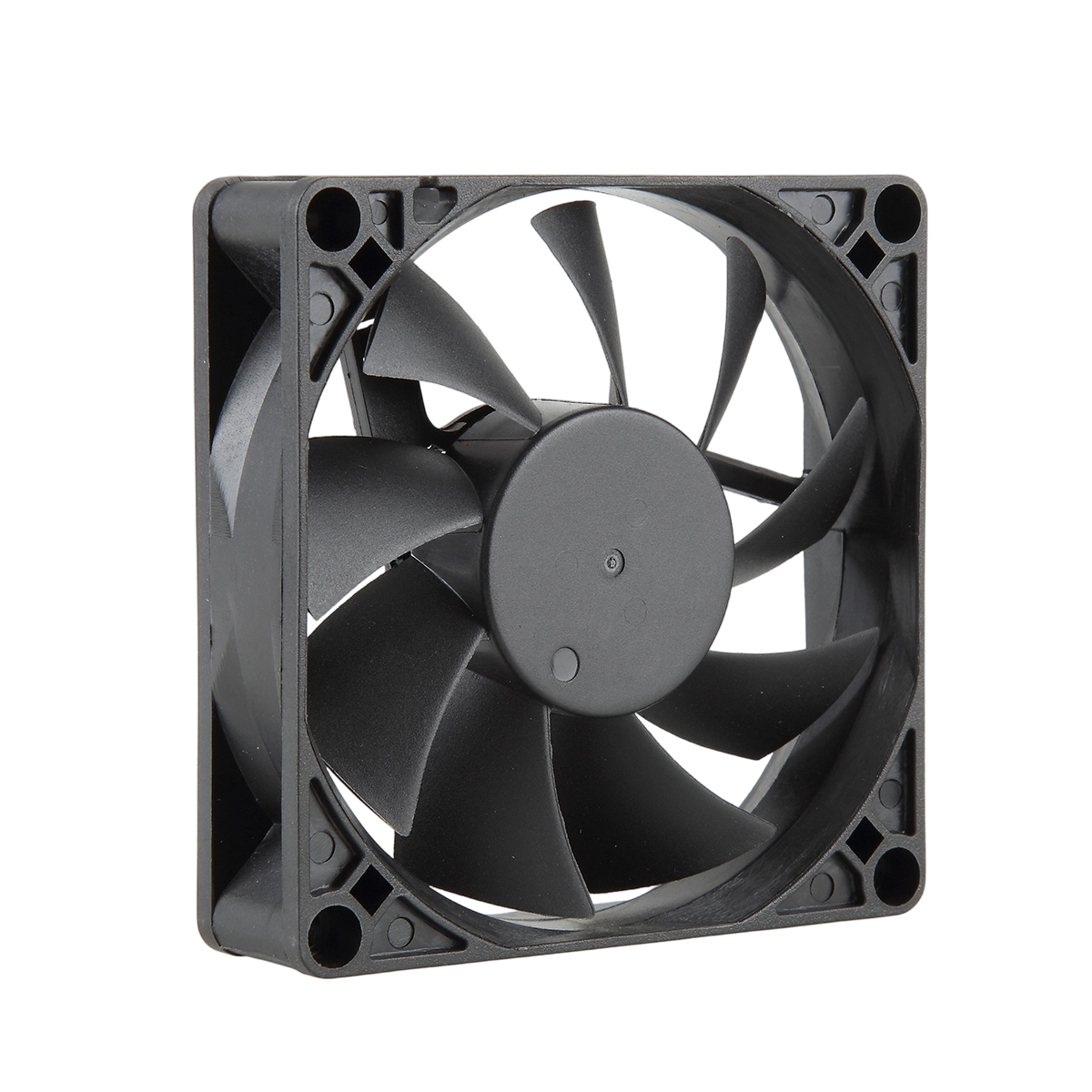

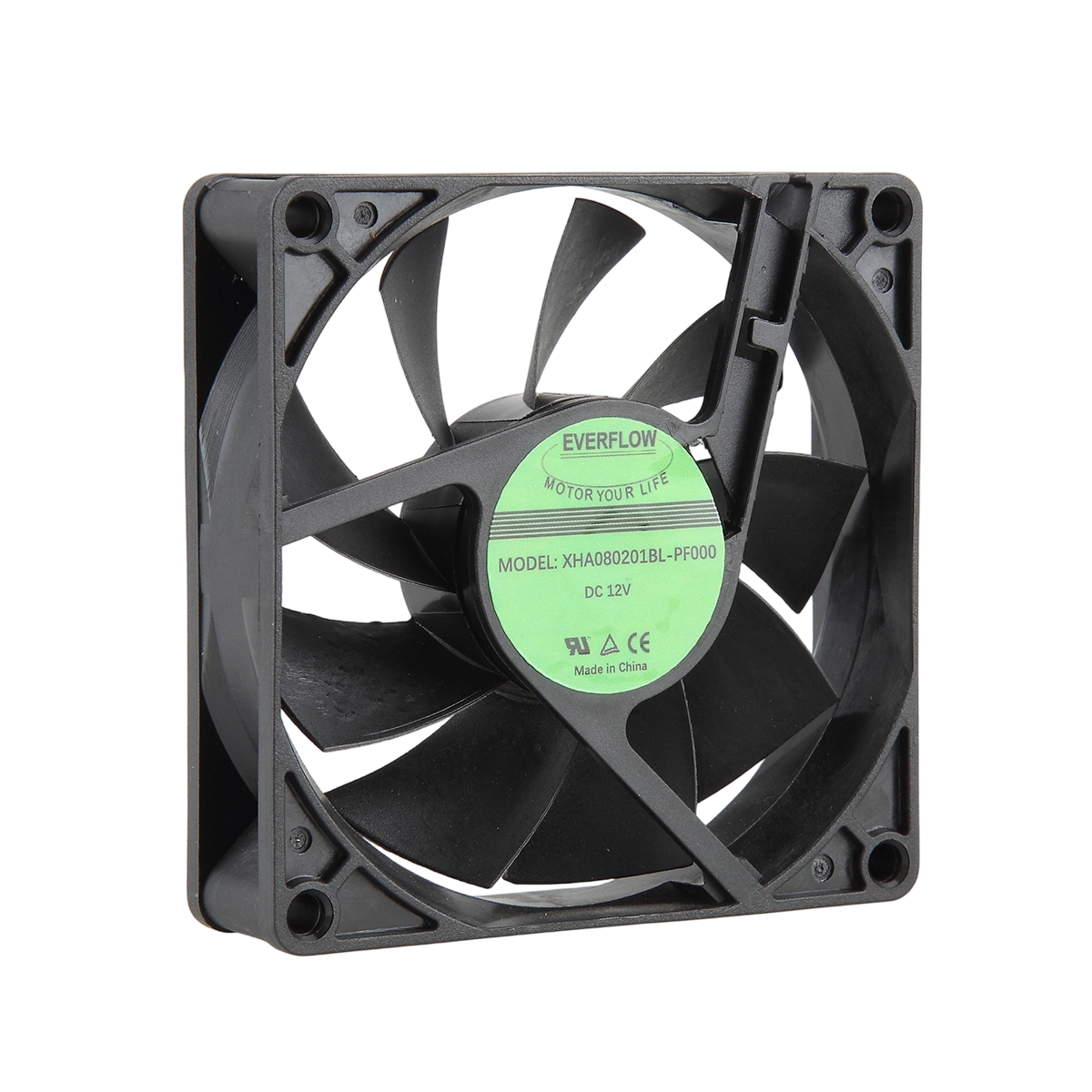

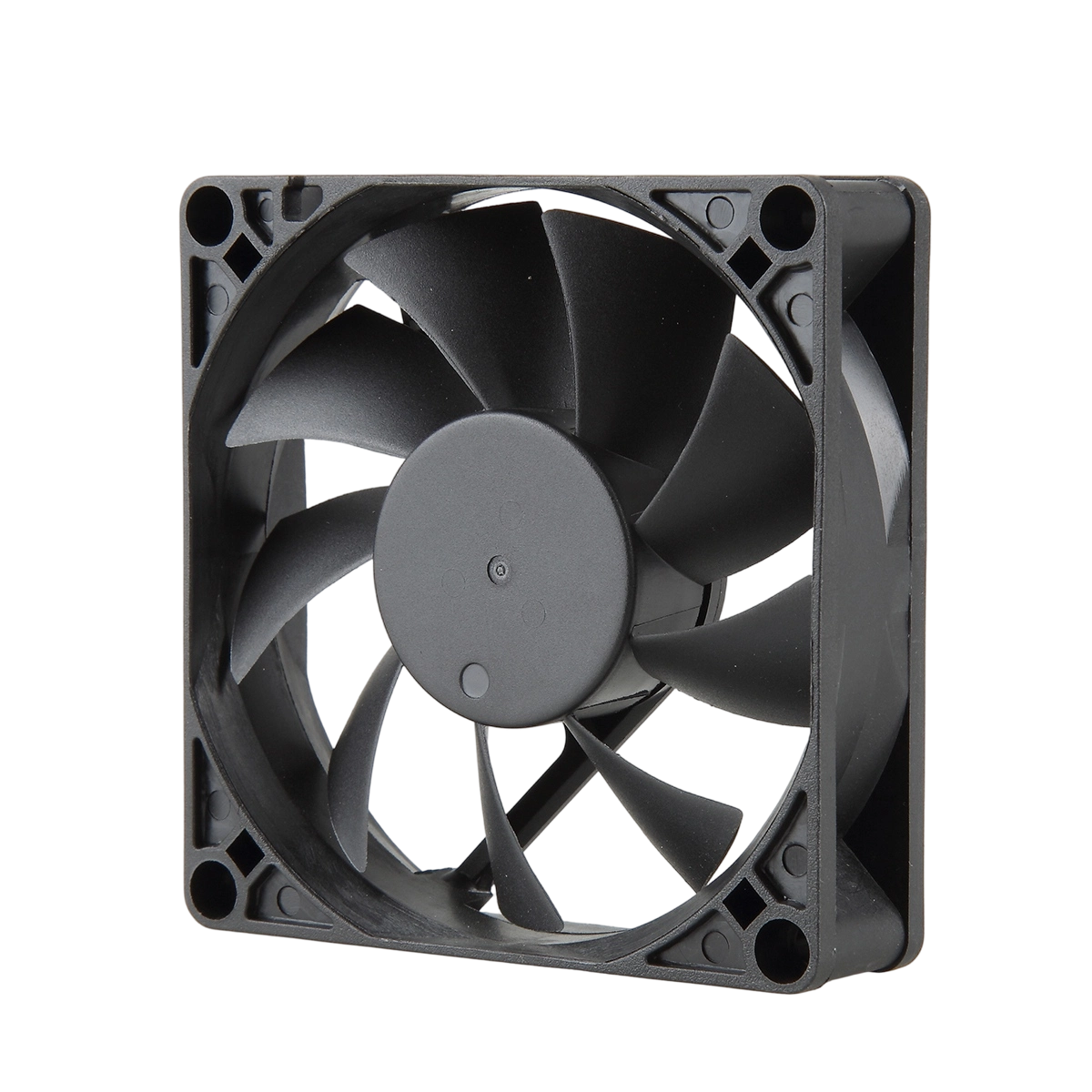

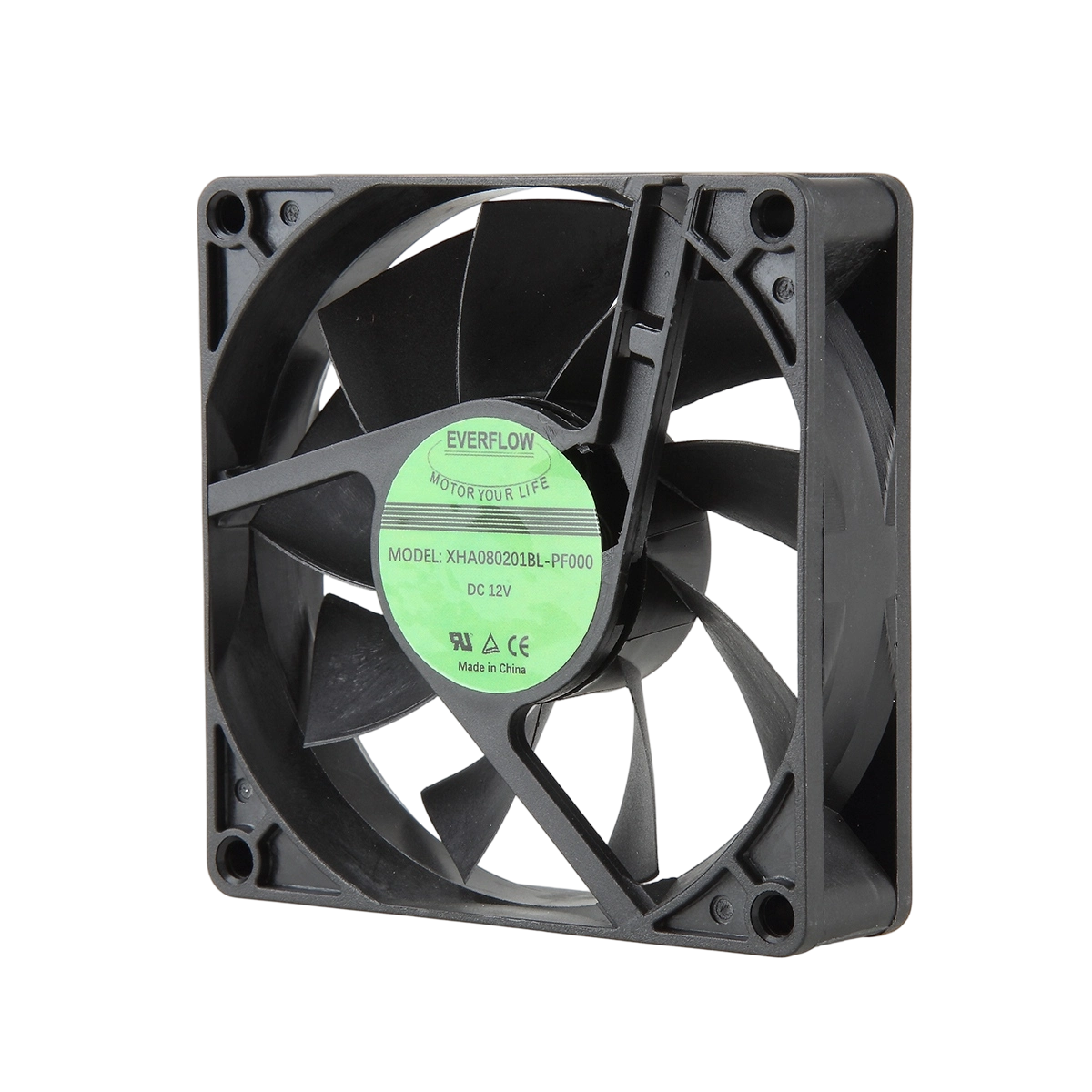

Series:80×80×20MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearingEBR
-
Protection:Auto-Restart /Impedance
-
Rated Voltage:12V
-
Operating Temp:-10~70℃
-
Weight:55g
8020 Serise
Basic Parameters

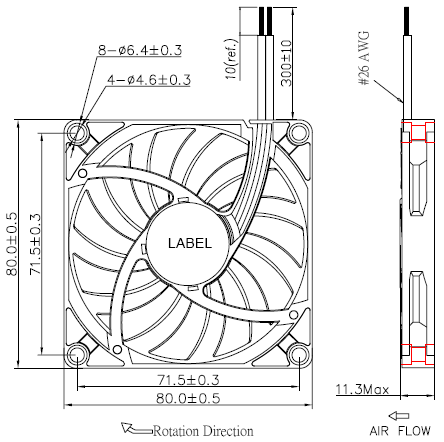

Illustration
Model
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XH080201BL | 12 | 7~13.2 | 0.20 | 2.40 | 2400 | 32.75 | 0.93 | 1.77 | 30.6 |
| XH080201BL | 12 | 7~13.2 | 0.40 | 4.80 | 3600 | 49.13 | 1.39 | 3.98 | 39.5 |
| XH080201BL | 12 | 7~13.2 | 0.55 | 6.60 | 4200 | 57.32 | 1.62 | 5.41 | 42.8 |
| XH080201BL | 12 | 7~13.2 | 1.00 | 12.00 | 4800 | 65.51 | 1.86 | 7.07 | 45.7 |
NOTES:”X”=”B”
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
