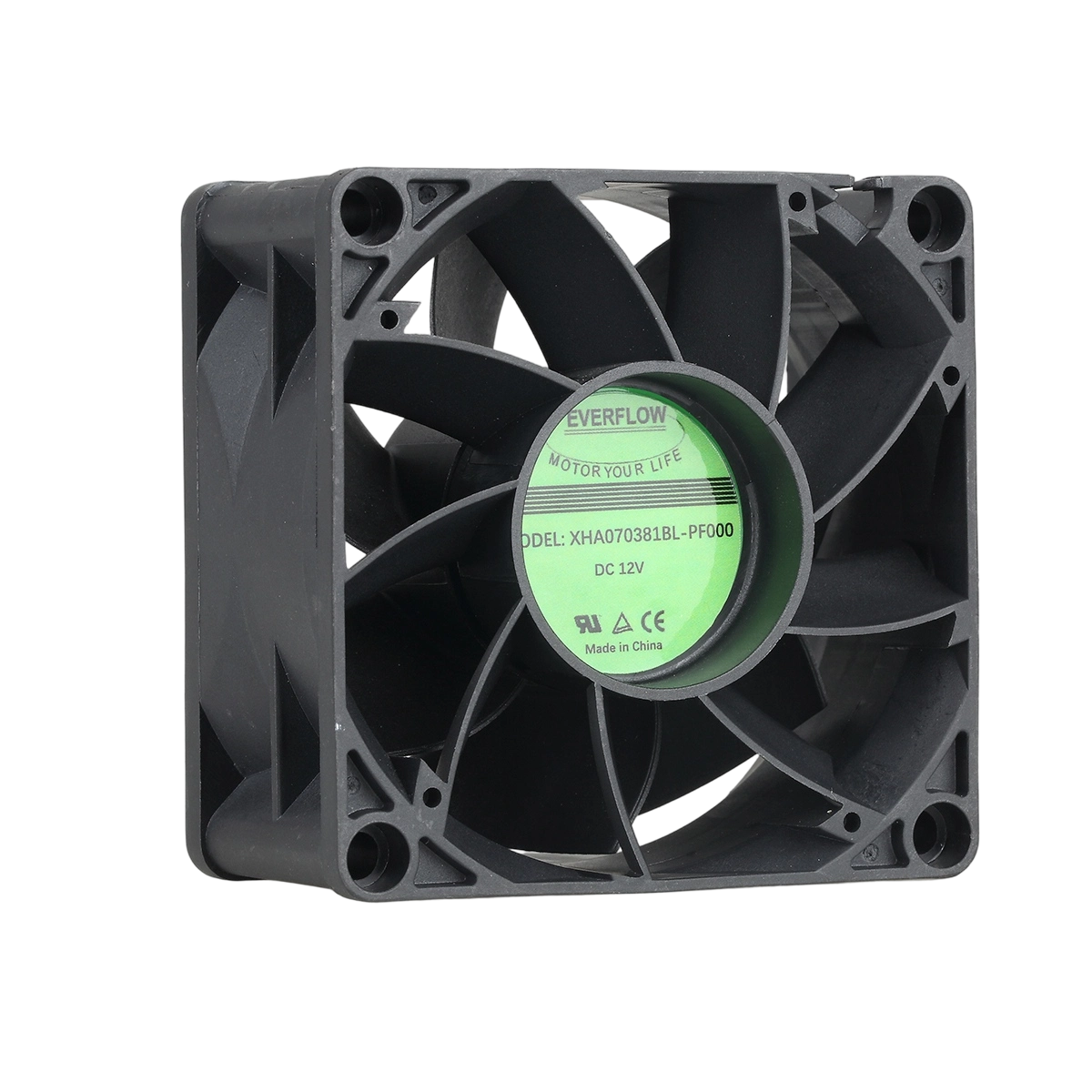

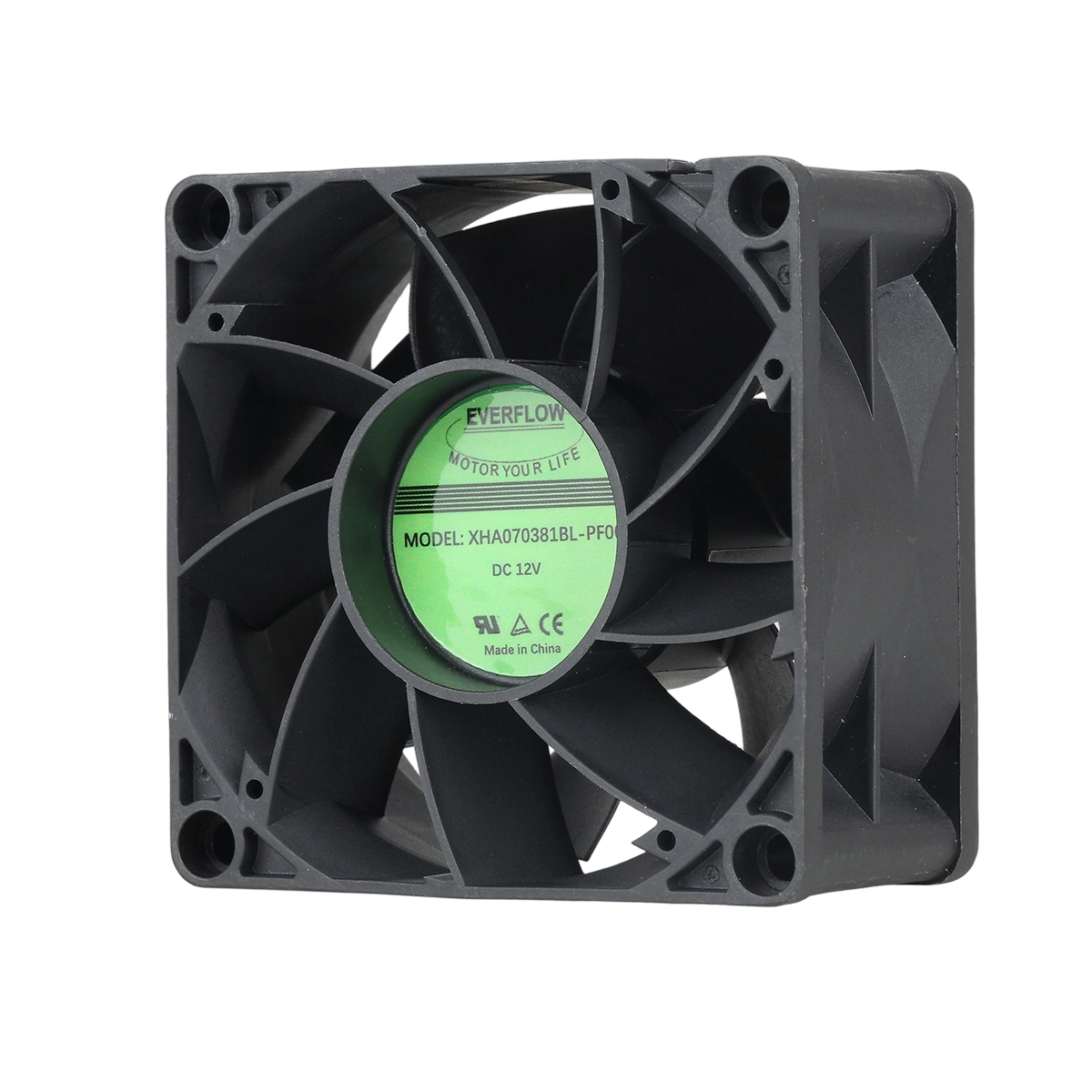

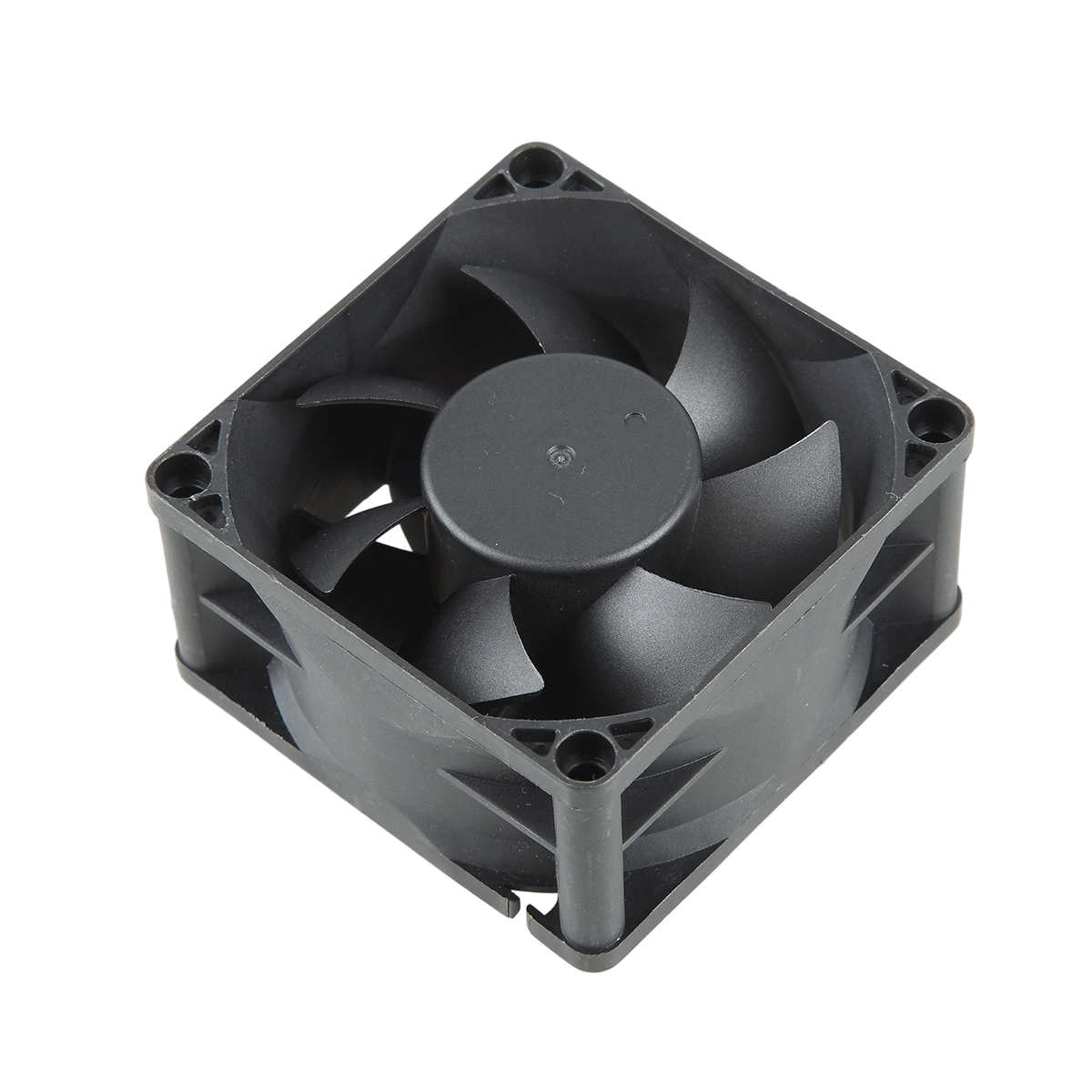

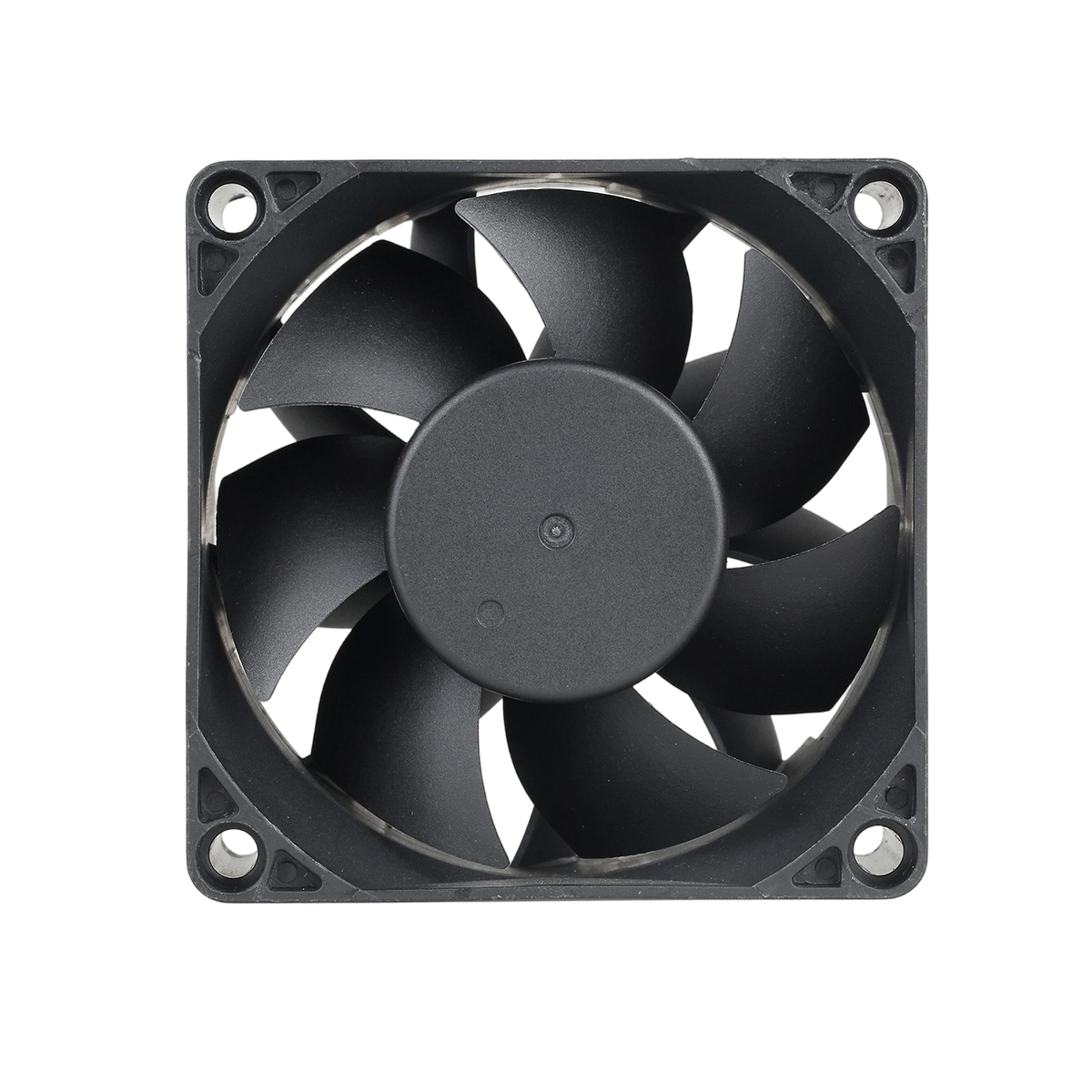

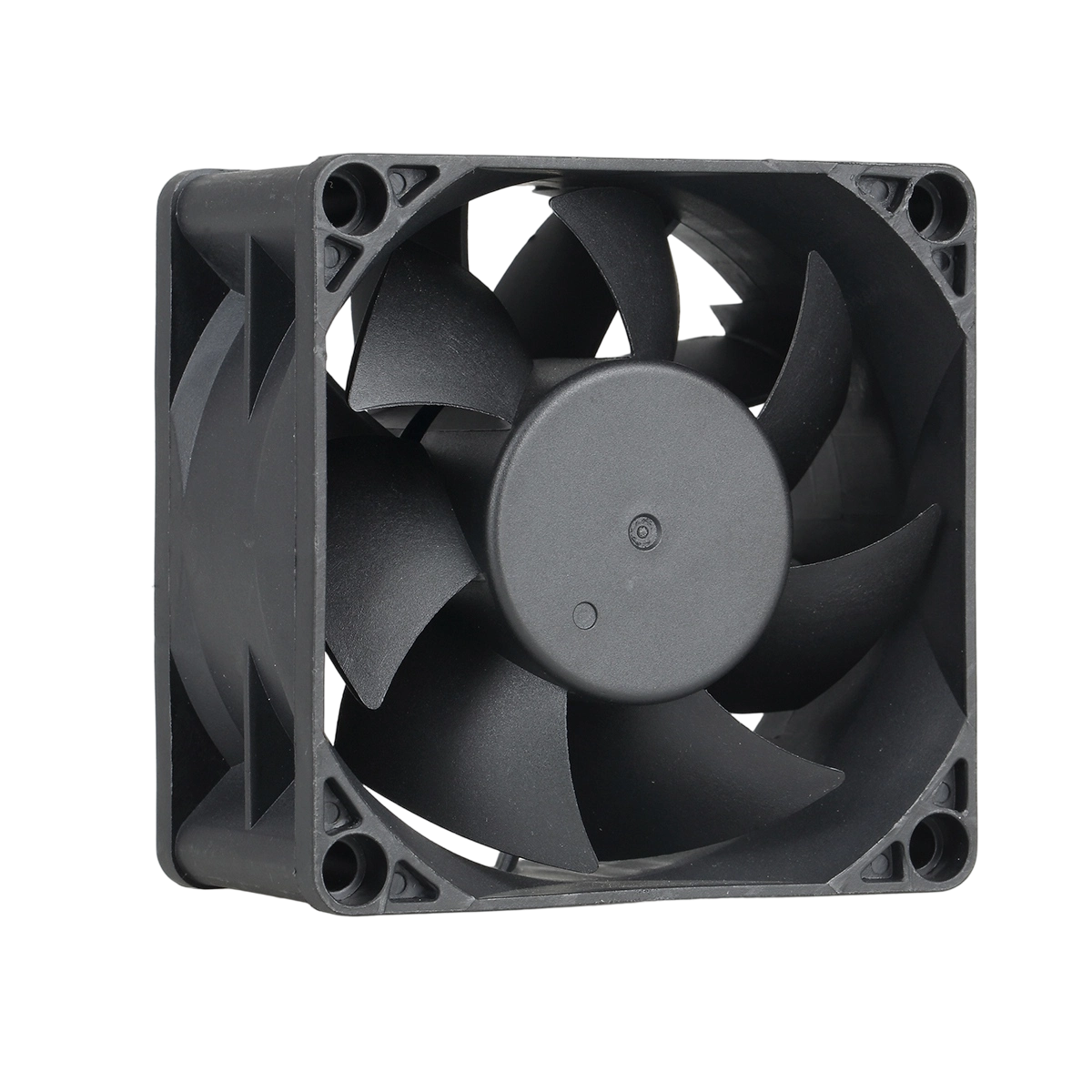

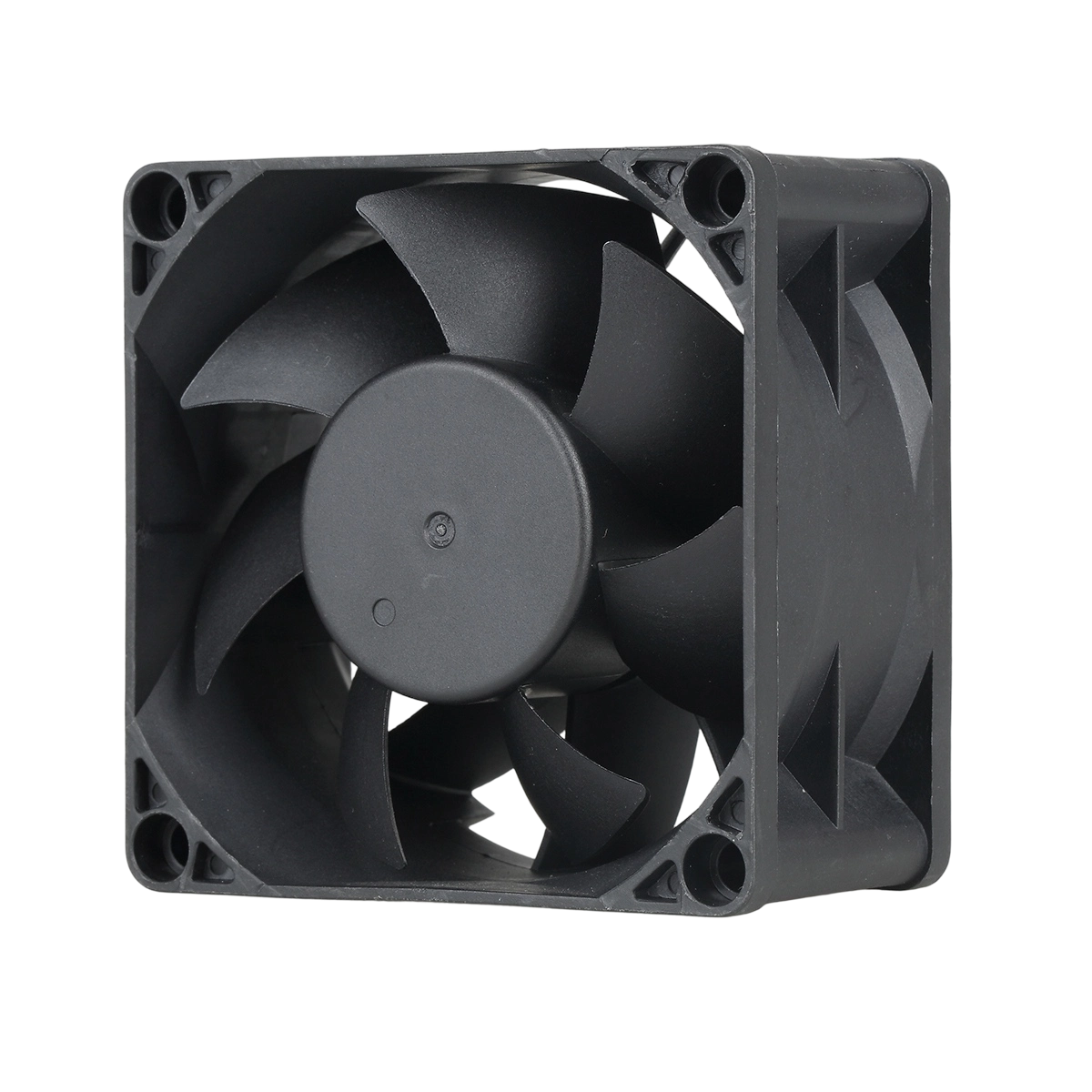

Series:70×70×38MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart /Impedance
-
Rated Voltage:12V
-
Operating Temp:-10~70℃
-
Weight:70g
7038 Serise
Basic Parameters

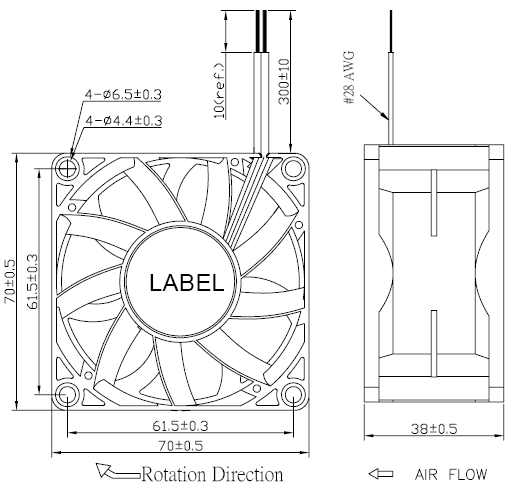

Illustration
Model
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHA070381BL | 12 | 7~13.2 | 0.28 | 3.36 | 3800 | 34.83 | 0.99 | 4.44 | 35.8 |
| XHA070381BL | 12 | 7~13.2 | 0.35 | 4.20 | 4800 | 43.99 | 1.25 | 7.09 | 45 |
| XHA070381BM | 12 | 7~13.2 | 0.50 | 6.00 | 5800 | 53.16 | 1.51 | 10.35 | 47.3 |
| XHA070381BM | 12 | 7~13.2 | 0.80 | 9.60 | 6800 | 62.32 | 1.77 | 14.22 | 51 |
NOTES:”X”=”B”
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
