Series:70×70×15MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearingEBR
-
Protection:Auto-Restart /Impedance
-
Rated Voltage:12V
-
Operating Temp:-10~70℃
-
Weight:42g
7015 Serise
Basic Parameters

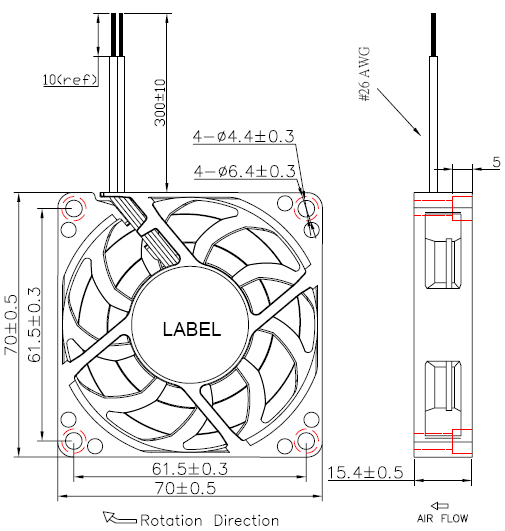

Illustration
Model
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHA070151BH | 12 | 7.0~13.2 | 0.13 | 0.72 | 3000 | 20.58 | 0.58 | 2.30 | 27.5 |
| XHA070151BH | 12 | 7.0~13.2 | 0.16 | 1.44 | 4000 | 27.41 | 0.78 | 3.76 | 35.4 |
| XHA070151BH | 12 | 7.0~13.2 | 0.23 | 2.64 | 5000 | 34.12 | 0.97 | 5.85 | 39.2 |
| XHA070151BH | 12 | 7.0~13.2 | 0.45 | 6.24 | 6400 | 44.45 | 1.26 | 9.07 | 46.2 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
