Series:70×70×10MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearingEBR
-
Protection:Auto-Restart /Impedance
-
Rated Voltage:12V
-
Operating Temp:-10~70℃
-
Weight:35g
7010 Serise
Basic Parameters

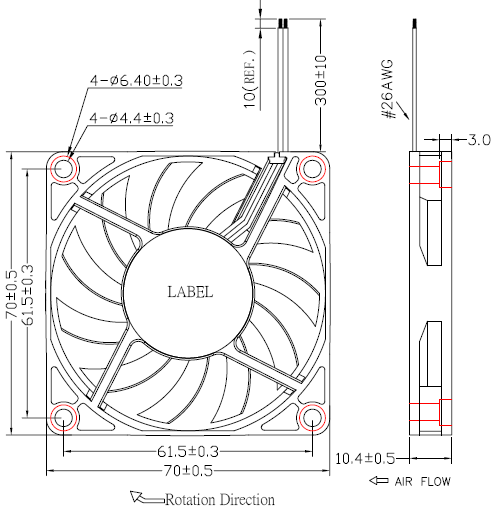

Illustration
Model
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHA070101BL | 12 | 7~13.2 | 0.18 | 2.16 | 3000 | 15.42 | 0.44 | 1.34 | 27.3 |
| XHA070101BL | 12 | 7~13.2 | 0.25 | 3.00 | 3600 | 18.51 | 0.52 | 1.93 | 31.1 |
| XHA070101BL | 12 | 7~13.2 | 0.35 | 4.20 | 4200 | 21.60 | 0.61 | 2.63 | 36.7 |
| XHA070101BL | 12 | 7~13.2 | 0.45 | 5.40 | 4800 | 24.69 | 0.70 | 3.43 | 40.3 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
