Series:60×60×38MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart
-
Rated Voltage:12V
-
Operating Temp:-10~70℃
-
Weight:125g
6038 Serise
Basic Parameters

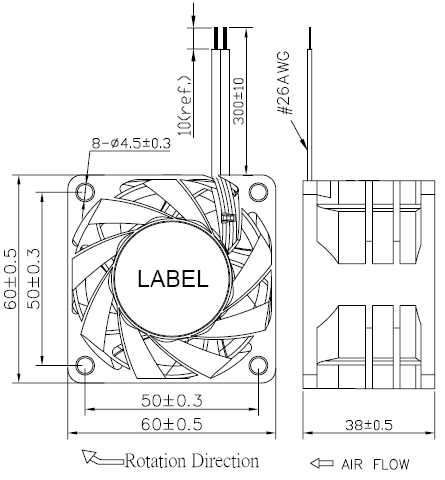

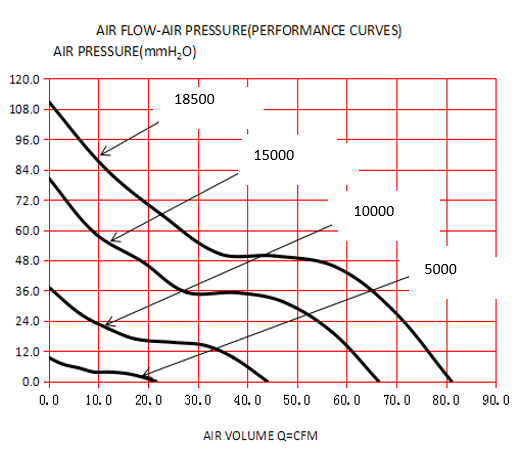

Illustration
Model
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XH060381BM | 12 | 7~13.2 | 0.12 | 1.44 | 5000 | 21.64 | 0.61 | 9.42 | 34.5 |
| XH060381BH | 12 | 7~13.2 | 0.55 | 6.60 | 10000 | 44.01 | 1.25 | 37.38 | 53 |
| XH060381BV | 12 | 7~13.2 | 1.75 | 21 | 15000 | 66.42 | 1.88 | 80.57 | 63.5 |
| XH060381BV | 12 | 7~13.2 | 3 | 36 | 18500 | 81.08 | 2.30 | 110.86 | 68 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
