Series:60×60×10MMMaterial:
-
Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
EBR
-
Protection:Auto-Restart /Impedance
-
Rated Voltage:
5V/12V
Operating Temp: -
-10~70℃
-
Weight:30g
6010 Serise
Basic Parameters

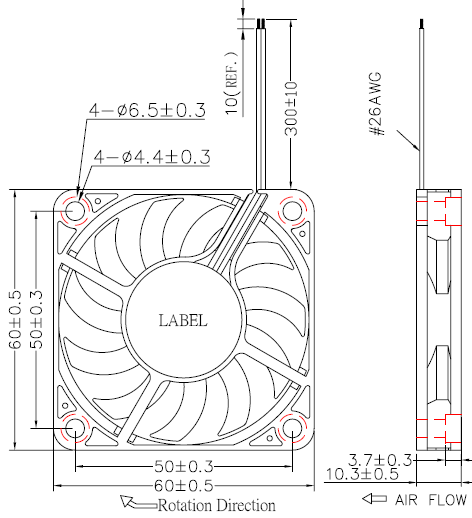

Illustration
Model
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHB060101BL | 12 | 7~13.2 | 0.05 | 0.60 | 3000 | 13.04 | 0.37 | 1.63 | 24.6 |
| XHB060101BL | 12 | 7~13.2 | 0.07 | 0.84 | 3600 | 15.51 | 0.44 | 2.33 | 28.2 |
| XHB060101BL | 12 | 7~13.2 | 0.11 | 1.32 | 4200 | 17.68 | 0.50 | 2.84 | 33.0 |
| XHB060101BM | 12 | 7~13.2 | 0.29 | 3.48 | 5800 | 23.40 | 0.66 | 5.20 | 44.5 |
| XHB060105BL | 5 | 4.5~5.5 | 0.03 | 0.15 | 1550 | 6.09 | 0.17 | 0.40 | 19.0 |
| XHB060105BL | 5 | 4.5~5.5 | 0.07 | 0.35 | 2500 | 10.86 | 0.31 | 1.13 | 20.5 |
| XHB060105BL | 5 | 4.5~5.5 | 0.15 | 0.75 | 3500 | 15.08 | 0.43 | 2.20 | 27.7 |
| XHB060105BL | 5 | 4.5~5.5 | 0.31 | 1.55 | 4500 | 18.95 | 0.54 | 3.27 | 33.8 |
| XHB060105BL | 5 | 4.5~5.5 | 0.33 | 1.65 | 4800 | 20.21 | 0.57 | 3.71 | 35.5 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
