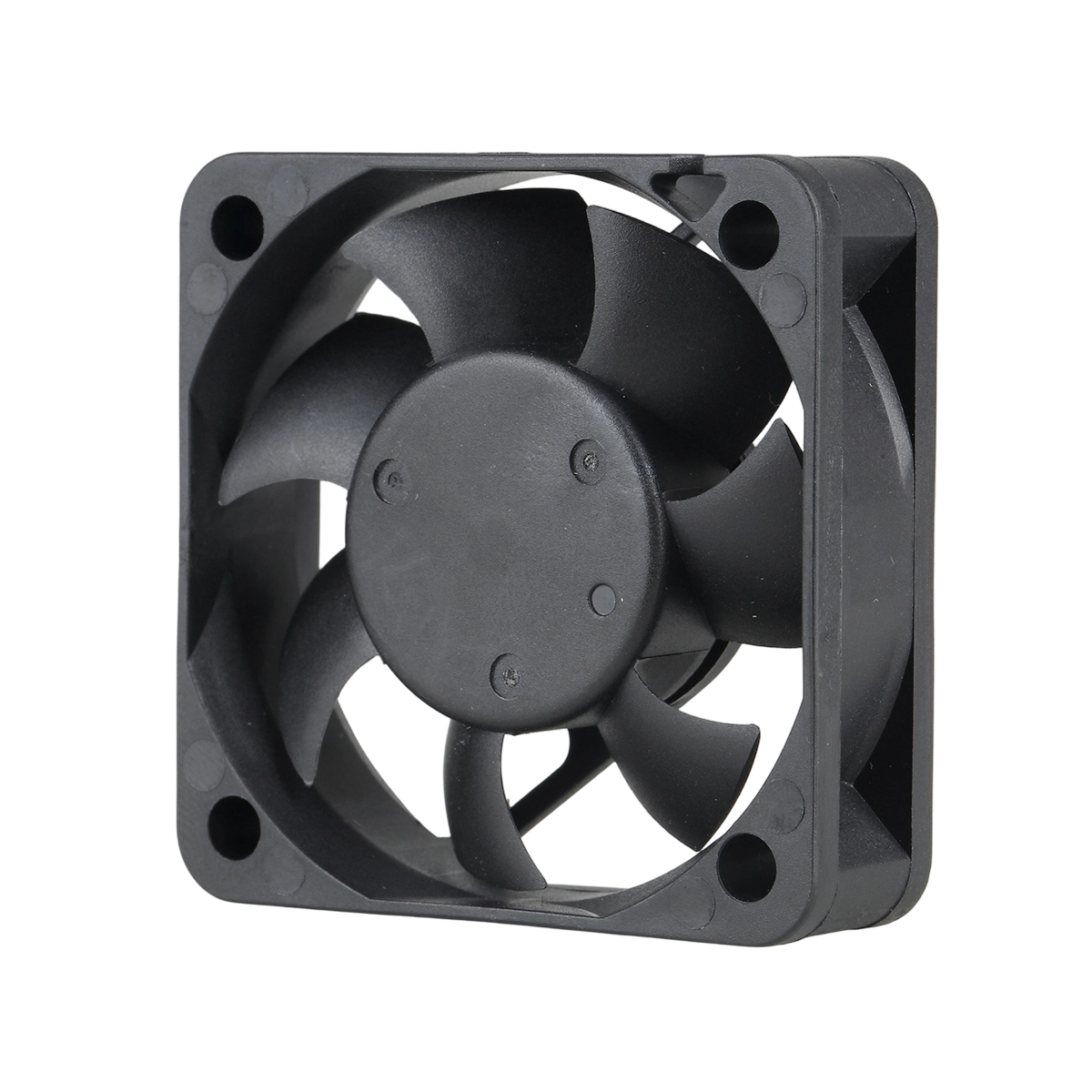

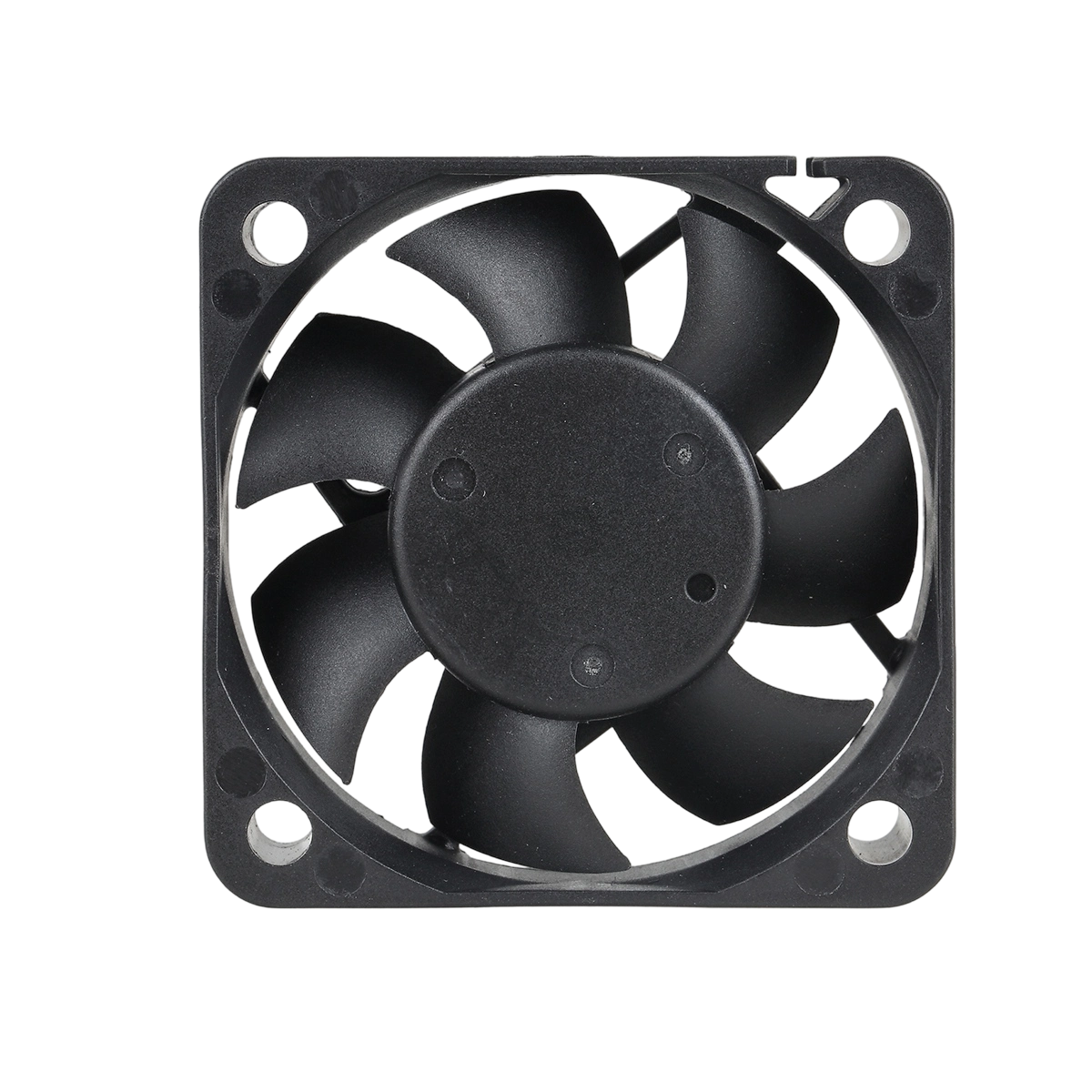

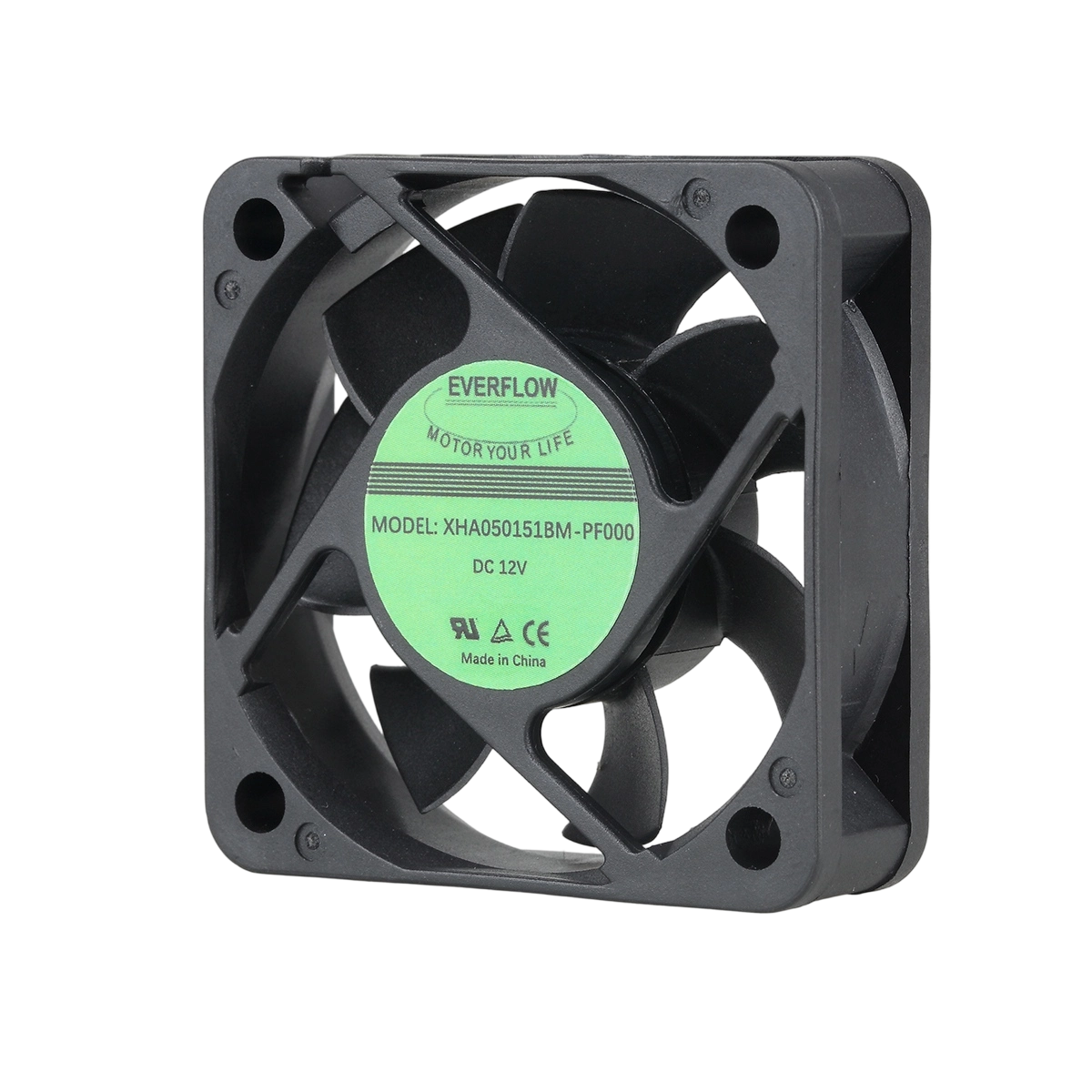

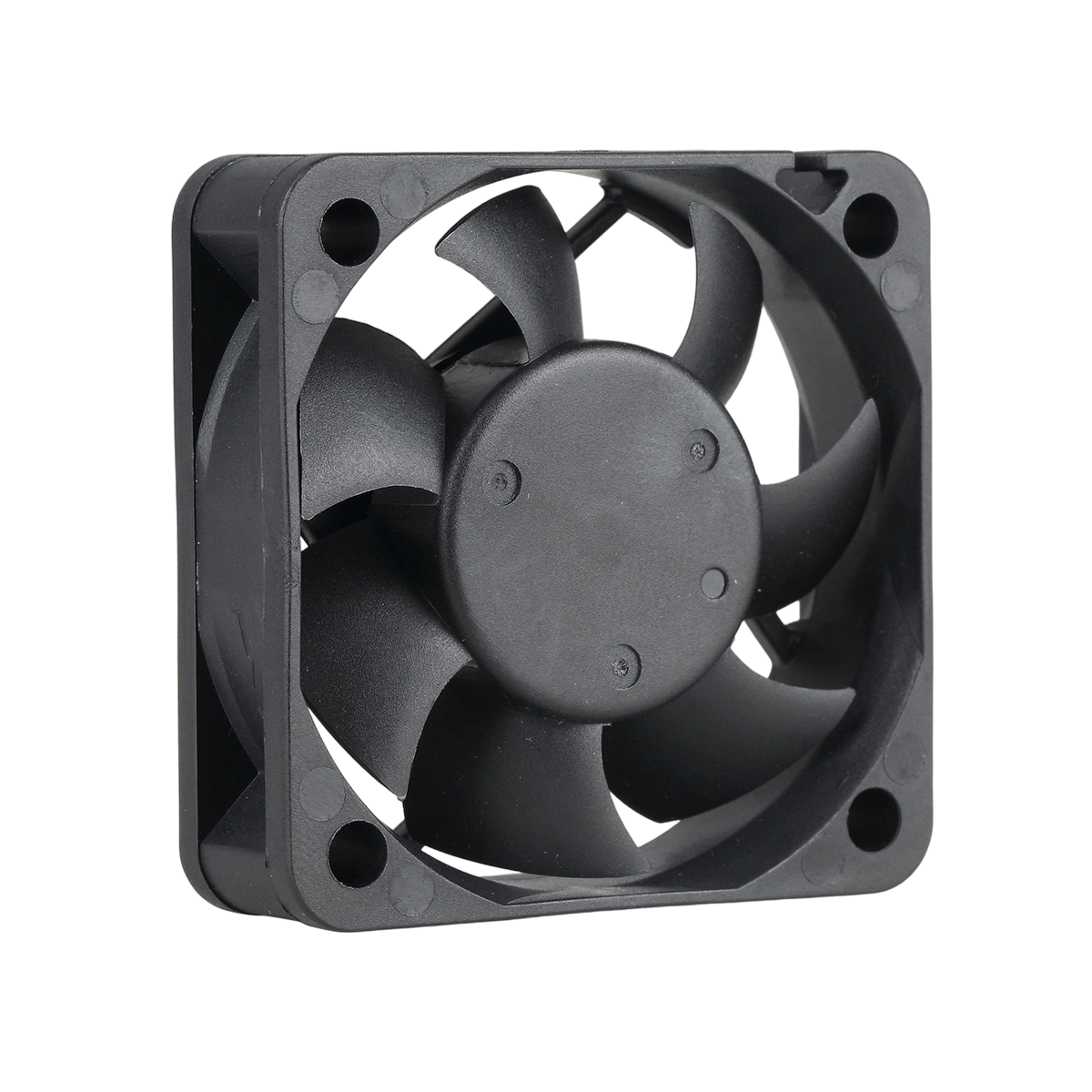

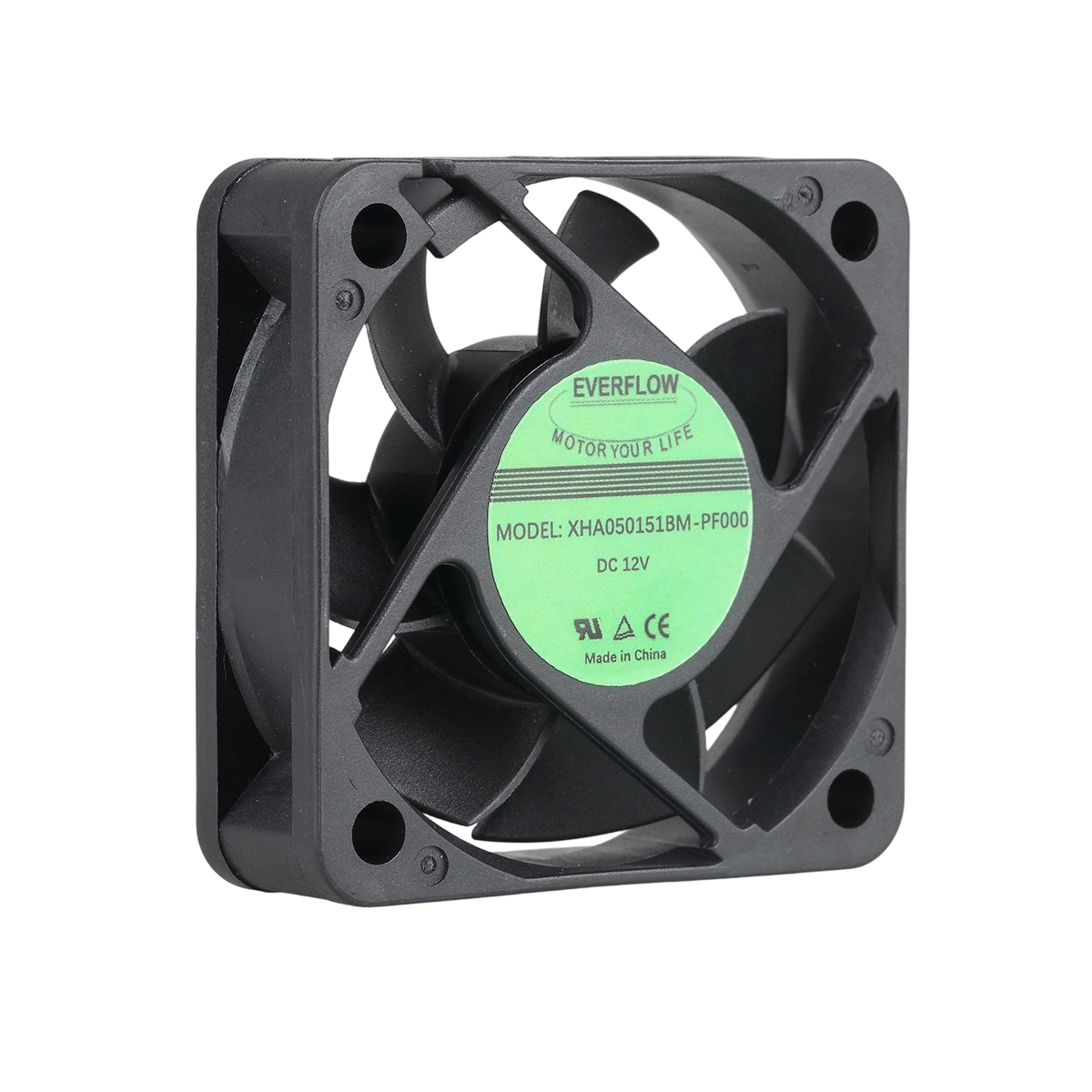

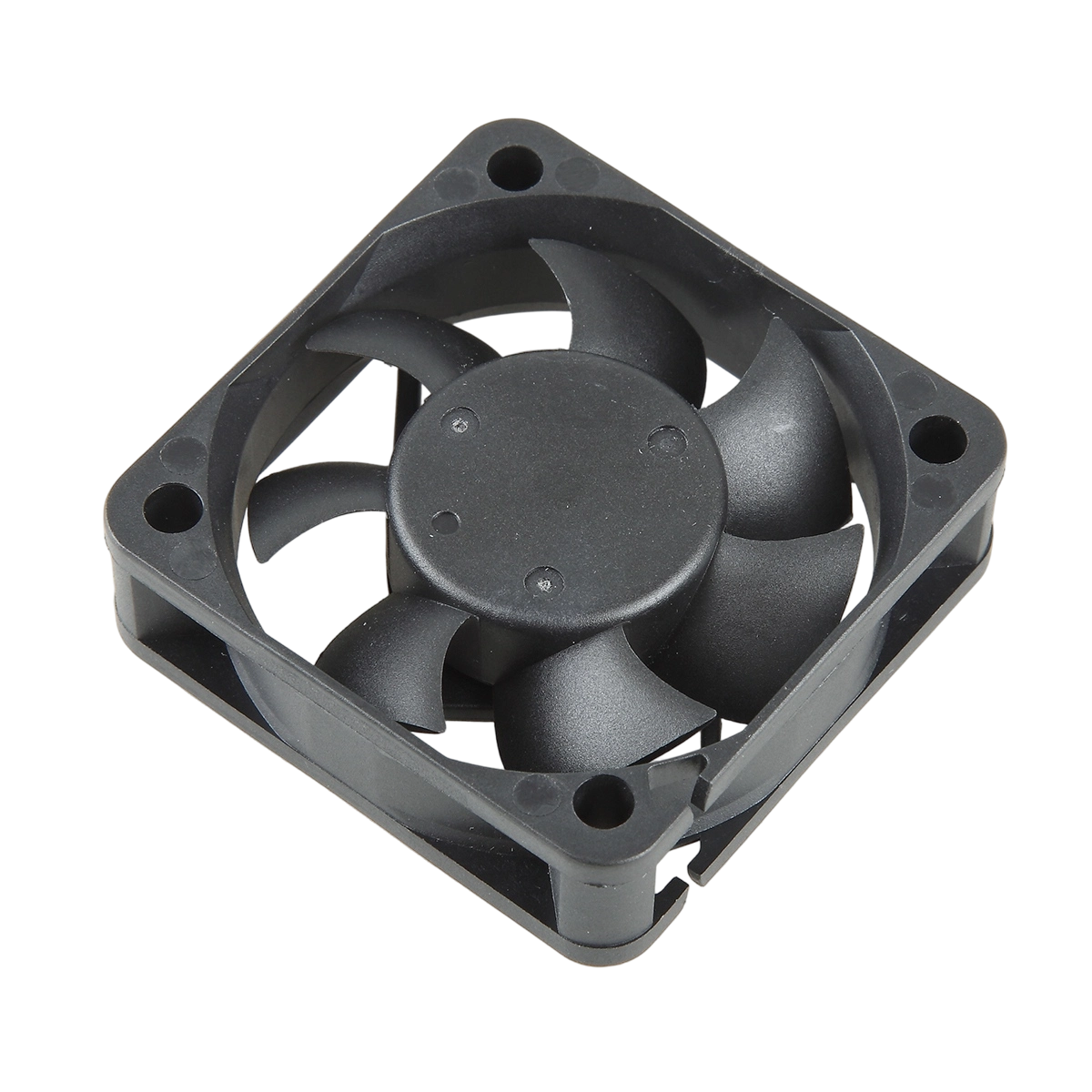

Series:50×50×15MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart /Impedance
-
Rated Voltage:12V
-
Operating Temp:－10~70℃
-
Weight:30g
5015 Serise
Basic Parameters

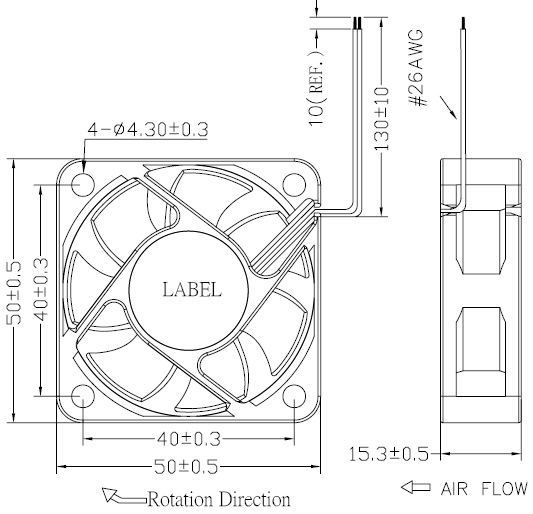

Illustration
Model
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XHA050105BL | 5 | 4.5~5.5 | 0.07 | 0.35 | 3300 | 6.28 | 0.18 | 1.13 | 20 |
| XHA050105BL | 5 | 4.5~5.5 | 0.12 | 0.60 | 4400 | 8.54 | 0.24 | 1.97 | 24.7 |
| XHA050105BM | 5 | 4.5~5.5 | 0.2 | 1.00 | 5500 | 10.54 | 0.30 | 2.70 | 30.7 |
| XHA050105BM | 5 | 4.5~5.5 | 0.32 | 1.60 | 6500 | 12.64 | 0.36 | 3.81 | 35.6 |
| XHA050101BL | 12 | 7~13.2 | 0.05 | 0.60 | 3500 | 6.66 | 0.19 | 1.27 | 21.1 |
| XHA050101BL | 12 | 7~13.2 | 0.08 | 0.96 | 4500 | 8.73 | 0.25 | 2.06 | 25.7 |
| XHA050101BM | 12 | 7~13.2 | 0.12 | 1.44 | 5500 | 10.54 | 0.30 | 2.70 | 30.7 |
| XHA050101BM | 12 | 7~13.2 | 0.20 | 2.40 | 7000 | 13.91 | 0.39 | 4.29 | 37.5 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
