Series:80×80×80MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart
-
Rated Voltage:12V/24V/48V/54V
-
Operating Temp:~10~70℃
-
Weight:450g

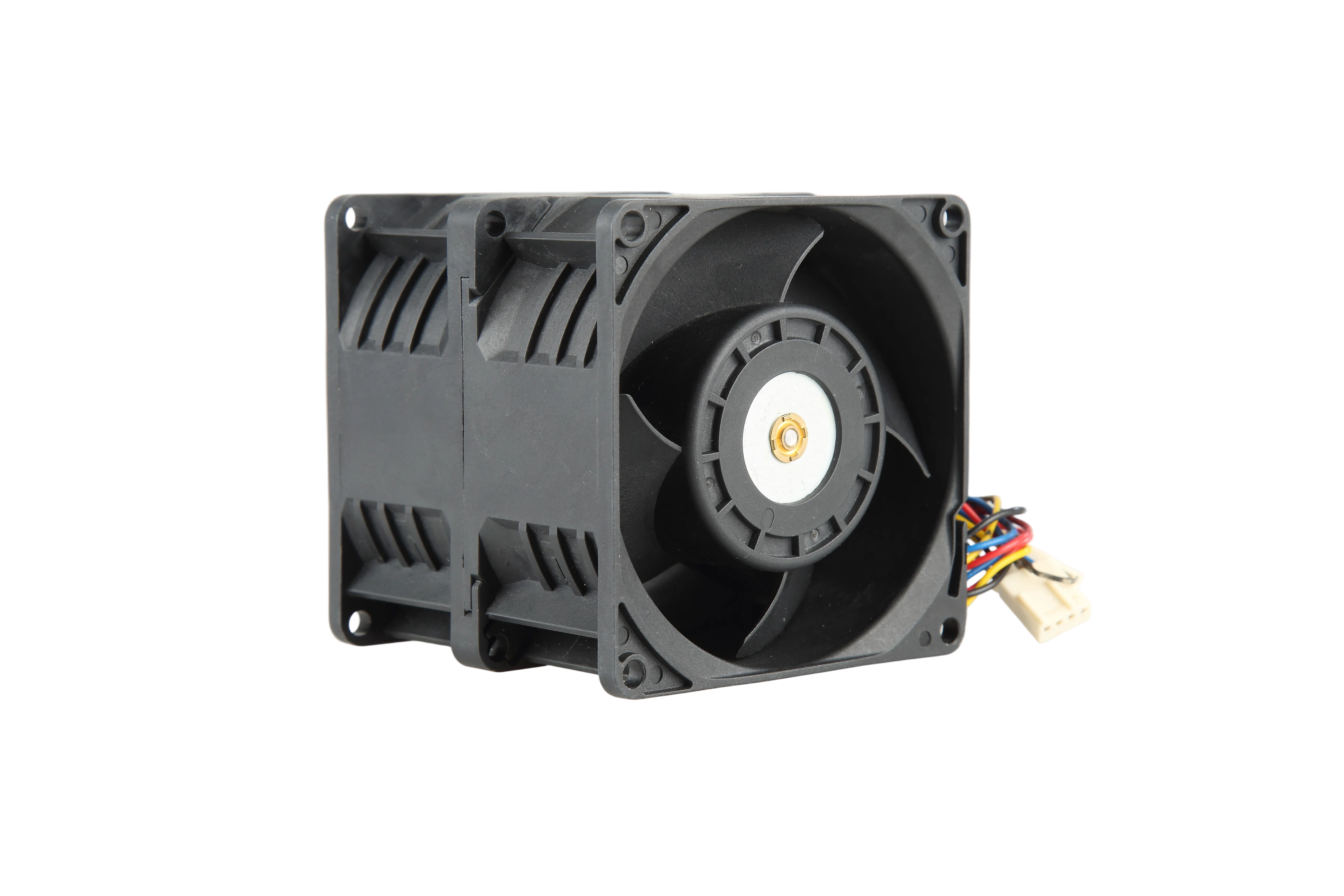

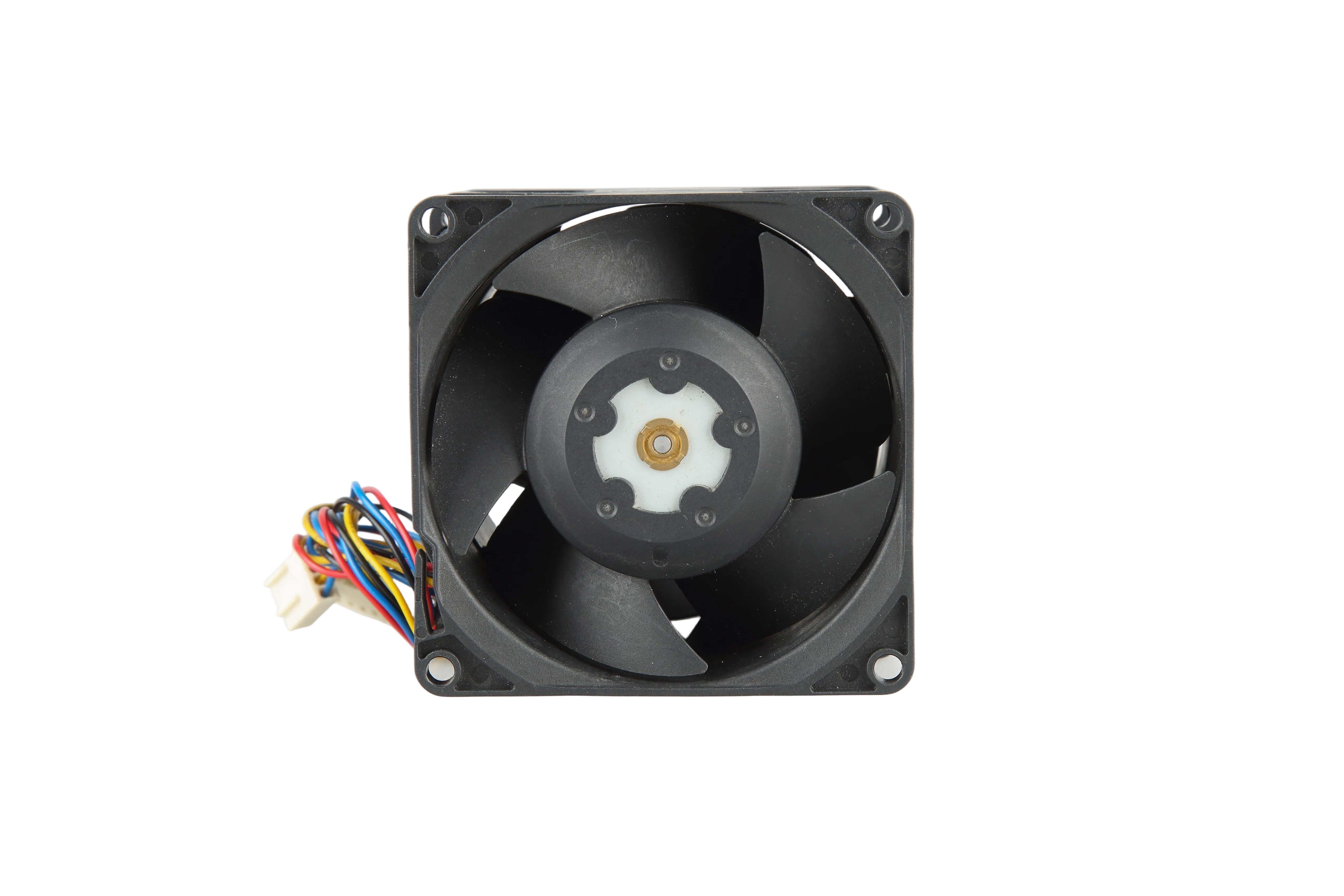

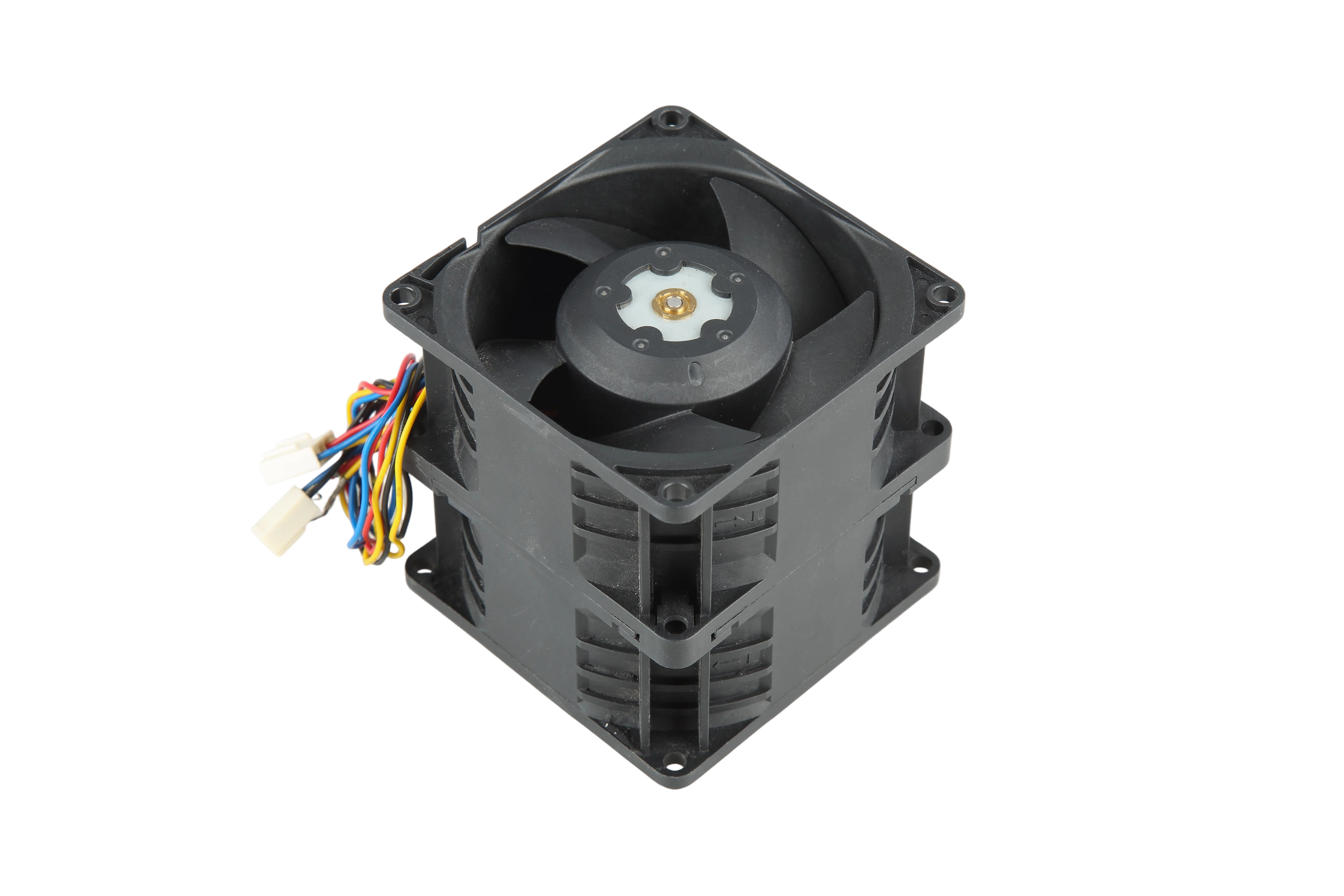

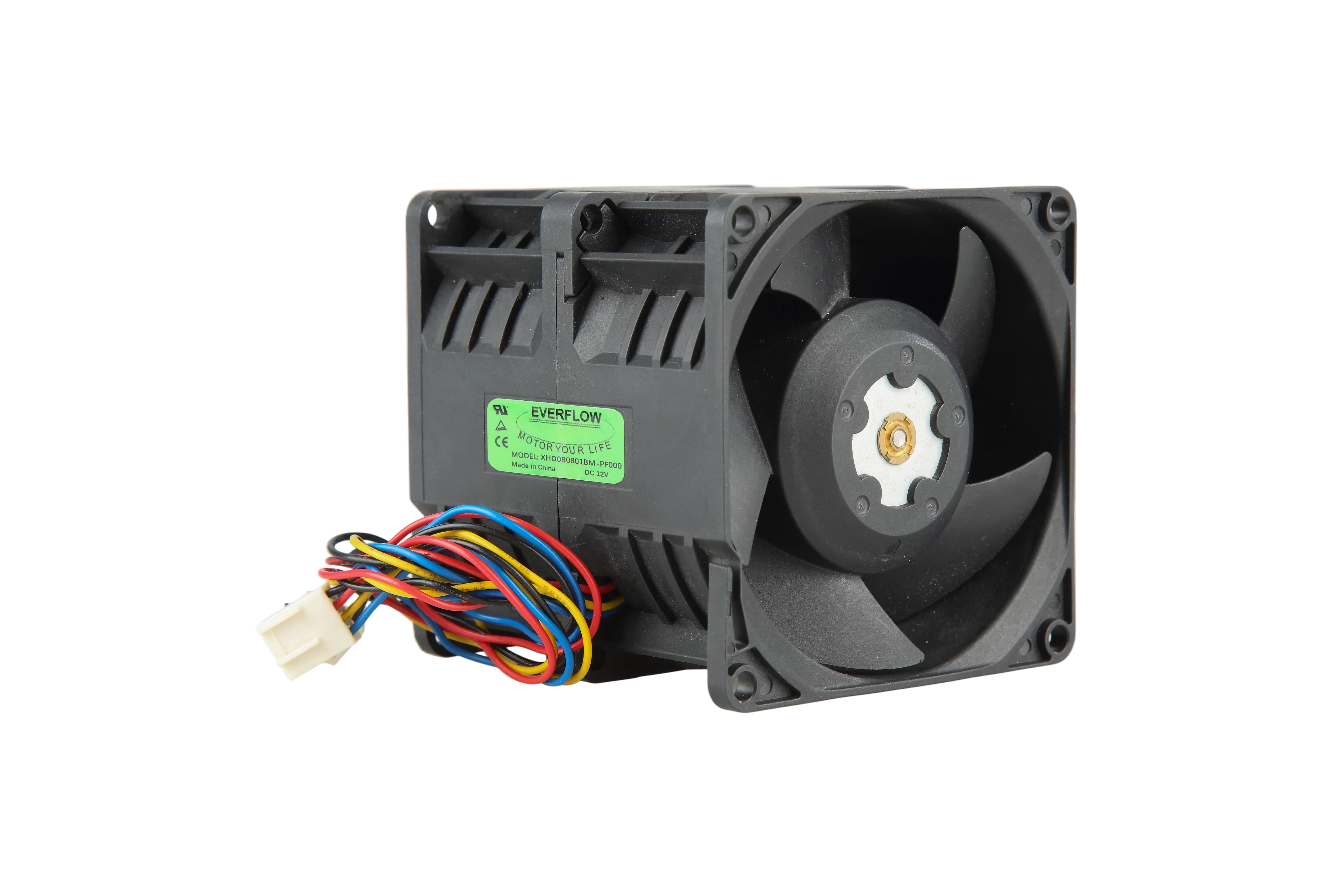

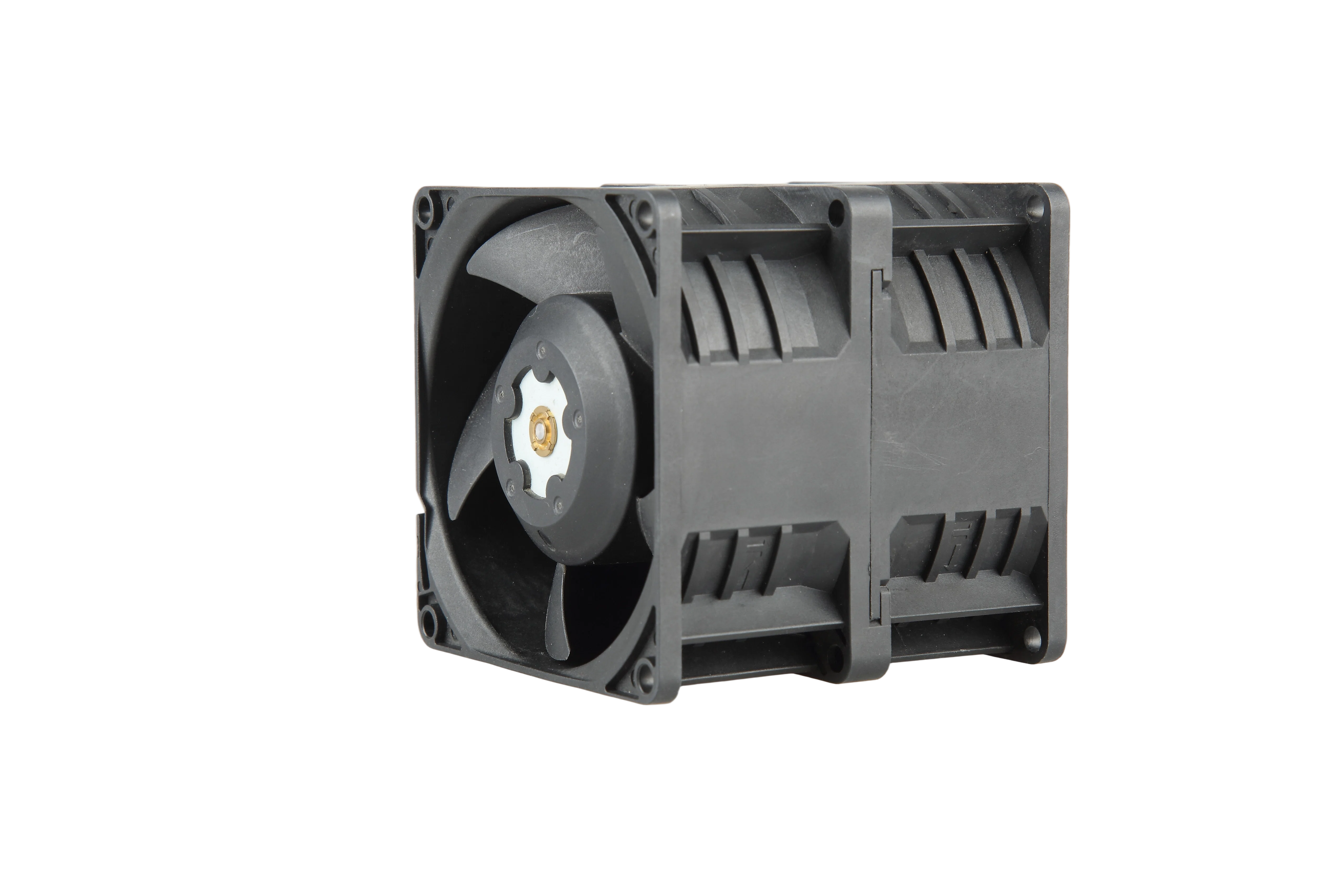

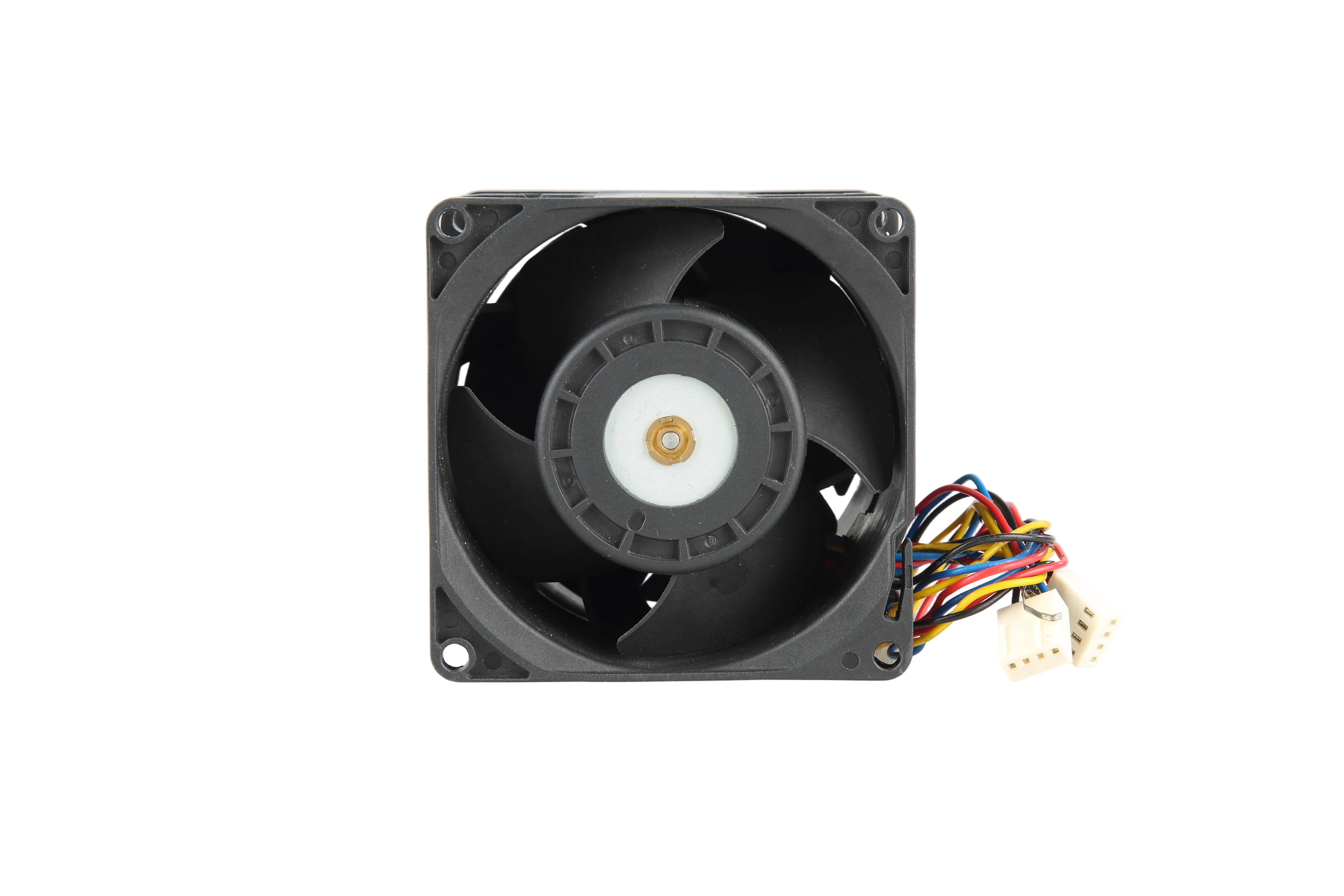

8080 Series Counter-Rotating Fan
Basic Parameters
Illustration
Model
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| XH080801BM | 12 | 7~13.2 | 1.25 |
15.00
|
8000(IN) 6000(OUT) |
83.39 | 2.36 | 55.95 | 63 |
| XH080801BH | 12 | 7~13.2 | 2.23 |
26.76
|
10000(IN) 8000(OUT) |
106.47 | 3.02 | 80.02 | 70 |
| XH080801BH | 12 | 7~13.2 | 5.22 |
62.64
|
13000(IN) 11000(OUT) |
142.90 | 4.05 | 135.87 | 75 |
| XH080801BV | 12 | 7~13.2 | 9.65 |
115.80
|
15500(IN) 14000(OUT) |
177.14 | 5.02 | 202.30 | 81.5 |
| XH080802BM | 24 | 12~26.4 | 0.63 | 15.12 | 8000(IN) 6000(OUT) |
83.39 | 2.36 | 55.95 | 63 |
| XH080802BH | 24 | 12~26.4 | 2.23 | 53.52 | 12000(IN) 10000(OUT) |
134.31 | 3.80 | 132.81 | 74 |
| XH080802BH | 24 | 12~26.4 | 4.28 | 102.72 | 15000(IN) 13000(OUT) |
170.52 | 4.83 | 196.90 | 81 |
| XH080802BV | 24 | 12~26.4 | 6.15 | 147.60 | 17000(IN) 15000(OUT) |
191.60 | 5.43 | 247.42 | 85 |
| XH080804BM | 48 | 28~56 | 0.34 | 16.32 | 8000(IN) 6000(OUT) |
83.39 | 2.36 | 55.95 | 63 |
| XH080804BH | 48 | 28~56 | 1.11 | 53.28 | 12000(IN) 10000(OUT) |
134.31 | 3.80 | 132.81 | 74 |
| XH080804BH | 48 | 28~56 | 1.97 | 94.56 | 15000(IN) 13000(OUT) |
170.52 | 4.83 | 196.90 | 81 |
| XH080804BV | 48 | 28~56 | 2.95 | 141.60 | 17000(IN) 15000(OUT) |
191.60 | 5.43 | 247.42 | 85 |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
