Series:80×80×32MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:
-
Rated Voltage:
-
Operating Temp:-10~70℃
-
Weight:
8032 Serise
Basic Parameters

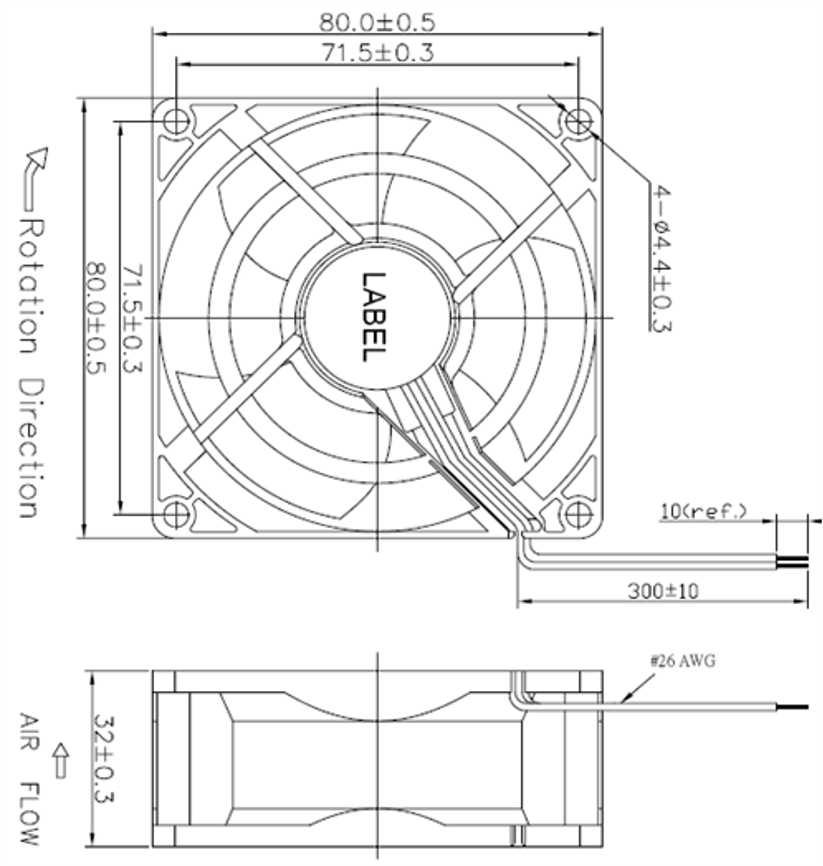

Illustration
Model
| Model | Rated Voltage (V) | Operating Voltage Range(V) | Rated Current (Amp) | Rated Input Power(W) | Rated Speed (rpm) | Air Flow | Static Pressure (mmH2O) | Sound level dB(A) | |
|---|---|---|---|---|---|---|---|---|---|
| (CFM) | m3/min | ||||||||
| 12 | 7.0~13.2 | 0.22 | 2.64 | 3000 | 33.87 | 0.96 | 3.51 | 27.8 | |
| 12 | 7.0~13.2 | 0.30 | 3.60 | 3600 | 40.65 | 1.15 | 5.05 | 33.2 | |
| 12 | 7.0~13.2 | 0.38 | 4.56 | 4200 | 47.42 | 1.34 | 6.88 | 38.7 | |
| 12 | 7.0~13.2 | 0.45 | 5.40 | 4800 | 54.20 | 1.54 | 8.98 | 42.9 | |
NOTES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
