Series:120×120×38MM
-
Material:Housing Plastic (UL: 94V-0)
Impeller Plastlc (UL: 94V-0)
-
Bearing Type:Two ball bearing
-
Protection:Auto-Restart
-
Rated Voltage:
12V
-
Operating Temp:~10~70℃
-
Weight:340g
12038 Serise
Basic Parameters

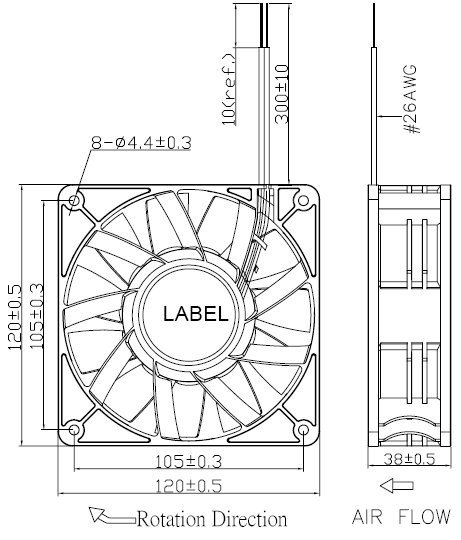

Illustration
Model
| MODEL | Rated Voltage (V) |
Operating Voltage Range (V) |
Rated Current (Amp) |
Rated Input Power (W) |
Rated Speed (rpm) |
Air Flow | Static Pressure (mmH2O) |
Sound level dB(A) |
||
| (CFM) | m3/min | |||||||||
| XHA120381BL | 12 | 7~13.2 | 0.38 | 4.56 | 1200 | 53.66 | 1.52 | 1.74 | 29 | |
| XHA120381BL | 12 | 7~13.2 | 0.45 | 5.40 | 2200 | 98.38 | 2.79 | 5.83 | 45 | |
| XHA120381BL | 12 | 7~13.2 | 1.0 | 12.00 | 3200 | 145.90 | 4.14 | 13.24 | 54 | |
| XHA120381BL | 12 | 7~13.2 | 2.5 | 30.00 | 4200 | 193.38 | 5.49 | 22.65 | 61 | |
NO
TES:"X"="B"
*Sound level measured at the distance of one meter from the axis of intake.
*Specifications are subject change without notice.
